SPECS

• body shape
• AEWC body
• top
• Quilted Maple Art Grain (Basswood) top
• back & sides
• Sapele back & Sapele sides
• neck
• Comfort GripNyatoh neck
• fretboard
• Rosewood fretboard
• bridge
• Rosewood AEWC original top loading bridge
• inlay
• Off-set white dot inlay
• soundhole rosette
• Water decal

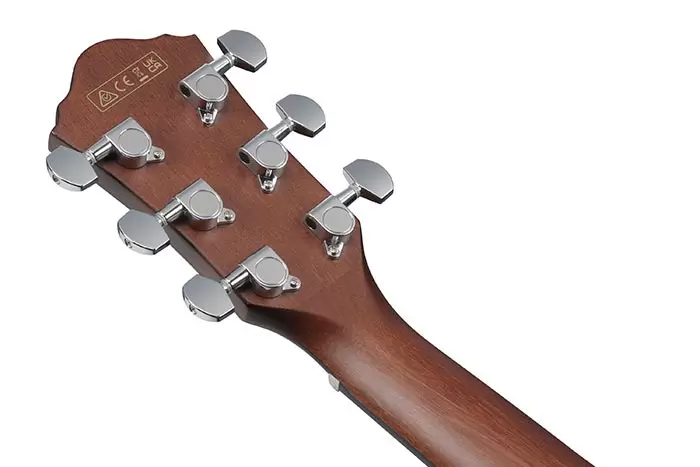

• tuning machine
• Chrome Die-cast tuners (18:1 gear ratio)
• number of frets
• 20
• strings
• Ibanez IACS6C
• string gauge
• .012/.016/.024/.032/.042/.053
• string space
• 11mm
• factory tuning
• 1E,2B,3G,4D,5A,6E
• pickup
• Ibanez Undersaddle
• preamp
• Ibanez AEQ-2T preamp w/Onboard tuner
• output jack
• 1/4" output
• battery
• 9V x1

NECK DIMENSIONS

• • Scale :
  • 634mm/25"
  • a : Width
  • 43mm at NUT
  • b : Width
  • 55mm at 14F
  • c : Thickness
  • 20mm at 1F
  • d : Thickness
  • 21mm at 7F
  • Radius :
  • 400mmR

BODY DIMENSIONS

• • a : Length
  • 19 3/8"
  • b : Width
  • 15"
  • c : Max Depth
  • 4"

•

PREAMP

Features

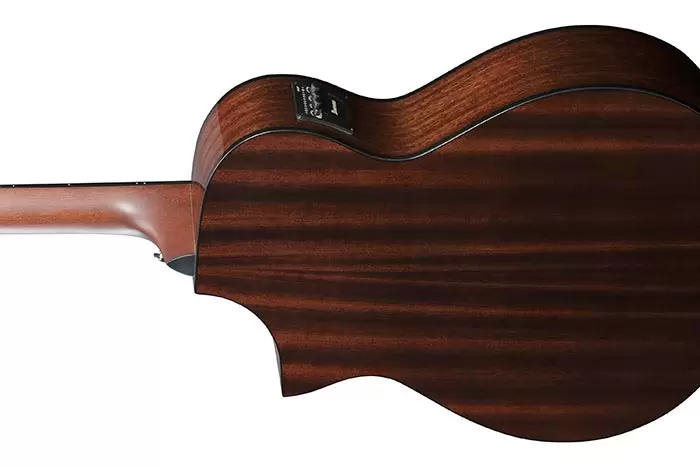

Sapele back and sides

Sapele back and sides offer a full-bodied and warm mid-range and a bright tone.

Ibanez Undersaddle pickup

The Ibanez Undersaddle Pickup accurately reproduces the acoustic nature of the bass.

Quilted Maple Art Grain (Basswood) top

The Quilted Maple Art Grain (Basswood) top displaying a gorgeous wood grain.

Ibanez AEQ-2T preamp w/Onboard tuner

AEQ-2T preamp is specifically-designed to adjust the frequencies of a bass and Treble, and allows operation of the built-in tuner without the instrument being plugged in.

Rosewood fretboard

Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

Rosewood top loading bridge

Rosewood top loading bridge offers fast and easy string changing without bridge pins.

Comfort Grip Nyatoh neck

The Comfort Grip Nyatoh Neck contour provides superior playability.
