SPECS

• neck type
• AZ Oval CS-TECH WOOD Roasted Maple neck
• top/back/body
• Ash body
• fretboard
• S-TECH WOOD Roasted Maple fretboardAbalone dot inlay
• fret
• Jumbo Stainless Steel fretsPrestige fret edge treatment
• number of frets
• 22
• bridge
• Gotoh® F1803 bridge
• string space
• 10.5mm
• neck pickup
• Seymour Duncan® Magic Touch-mini™ (H) neck pickupPassive/Alnico
• bridge pickup
• Seymour Duncan® Alnico II Pro™ Custom (S) bridge pickupPassive/Alnico
• factory tuning
• 1E,2B,3G,4D,5A,6E
• strings
• D'Addario® EXL110
• string gauge
• .010/.013/.017/.026/.036/.046
• nut
• Bone nut
• hardware color
• Chrome

NECK DIMENSIONS

• • Scale :
  • 648mm/25.5"
  • a : Width
  • 42mm at NUT
  • b : Width
  • 56.4mm at 22F
  • c : Thickness
  • 20.5mm at 1F
  • d : Thickness
  • 22.5mm at 12F
  • Radius :
  • 305mmR

SWITCHING SYSTEM

CONTROLS

OTHER FEATURES

• Recommended Bag
• IGB724-BK

• Gotoh® Magnum Lock machine heads w/H.A.P.

• dyna-MIX5 switching system w/Alter Switch

• Luminlay side dots

• Gotoh®/Ibanez co-designed "In-Tune" saddles

• Hardshell case included

Features

Gotoh® F1803 bridge

The Gotoh® F1803 bridge improves sustain and tuning stability.

Seymour Duncan® Magic Touch-mini™ / Alnico II Pro™ Custom pickups

The Magic Touch-mini™ pickup in the neck position offers iconic tonal clarity for which this style of guitar is known, yet with extra body and articulation. The output level is also carefully configured to perfectly match the bridge pickup. The Alnico II Pro™ Custom pickup in bridge position offers up an ample supply of clarity and twang, while also delivering a nice mid-range bark.

dyna-MIX5 switching system with Alter Switch

The dyna-MIX5 switching system with Alter Switch adds a sound variation to fit so many different kinds of playing style.

Gotoh®/Ibanez co-designed "In-Tune" saddles

These saddles are equipped with grooves which actively prevent each string from slipping to the side.
The saddles also feature rounded edges and deeper grooves on 1st and 6th strings, which means much less saddle tilting is required to adjust the string height, and equal string spacing is more easily achieved. Additionally, the saddles are designed with pre-calculated “intonation points” where the string touches the saddle, allowing each string to have and maintain precise intonation. The 10.5mm string spacing allows for easy picking across strings. The saddles themselves are made of titanium for maximum tonal clarity.

Steel pickup plate

This steel pickup plate is designed exclusively for AZS series. It’s a critical component that helps generate that quintessential ”Twangy” tone, for which this style guitar is known. This plate is present on both the tremolo and hardtail versions of the AZS, something that is not typical for guitars of this type. This plate, in combination with the traditional style single coil bridge pickup, preserves this iconic sound across the entire AZS lineup.

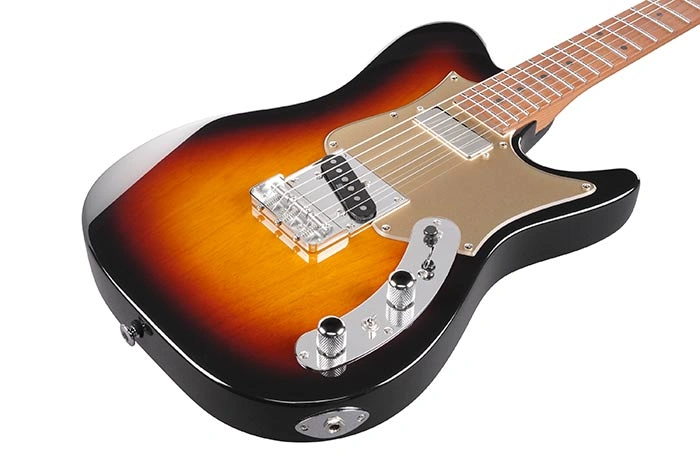

Control plate specially designed for AZS series

This control plate is curved for easier access to all the knobs and switches, without sacrificing its traditional appearance.

S-TECH WOOD Roasted Maple fretboard w/Abalone dot inlay

S-TECH special roasted treatment provides a superior attack and a well-balanced tone and a rich sustain. In order to achieve supreme neck grip comfort, the fretboard edge is finished with a smooth curve.

Oil-impregnated Bone nut /Stainless Steel Frets

The Oil-impregnated bone nut provides superior tuning stability and warm rich resonance. Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response, good articulation when playing chords and clear tone when playing single notes.

Oval C S-TECH WOOD Roasted Maple neck

S-TECH special roasted treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes. The neck is sealed with an oil finish which helps make it feel similar to a well-played guitar neck.

Gotoh® Magnum Lock machine heads w/H.A.P.(Height Adjustable Post)

GOTOH® MAGNUM LOCK® machine heads have an established reputation for tuning stability. Its H. A. P® (Height Adjustable Post). system allows for the adjustment of string posts for the appropriate tension of each string.

Luminlay side dot inlays

The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

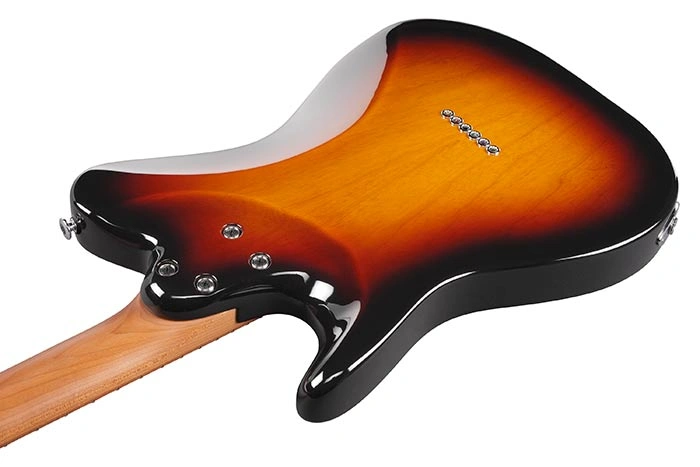

Super All Access Neck Joint

The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.
