PRODUCT OVERVIEW
neck type AZ Oval C Roasted Maple neck
top/back/body Walnut topNyatoh body
fretboard Jatoba fretboardOff-set white block inlay
fret Jumbo Stainless Steel frets
number of frets 24
bridge Gotoh® T1502 tremolo bridge
neck pickup Seymour Duncan® Alnico II Pro™ (S) neck pickup
bridge pickup Seymour Duncan® Hyperion™ (H) bridge pickupPassive/Alnico
factory tuning 1E,2B,3G,4D,5A,6E
string gauge .010/.013/.017/.026/.036/.046
nut Graph Tech®
hardware color Chrome
Scale : 648mm/25.5"
a : Width 42mm at NUT
b : Width 57mm at 24F
c : Thickness 20.5mm at 1F
d : Thickness 22.5mm at 12F
Radius : 305mmR

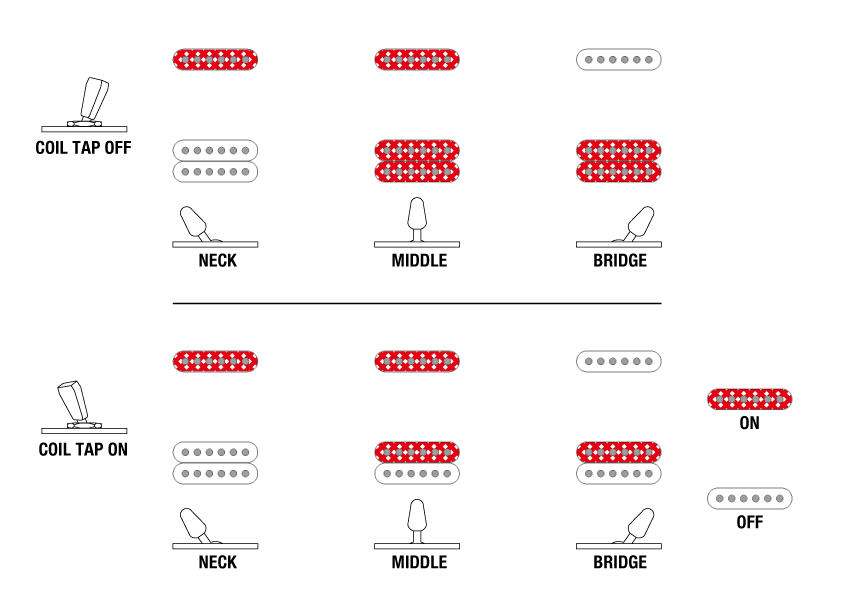

SWITCHING SYSTEM

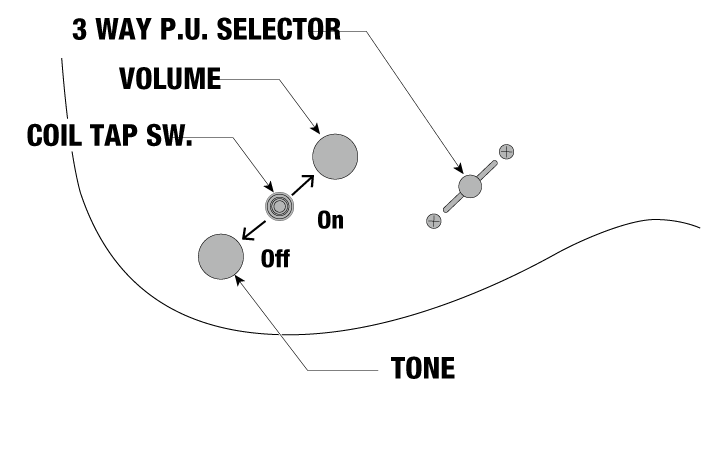

CONTROLS
