SPECS

• neck type

  AZ Oval CRoasted Maple neck

• top/back/body

  Poplar Burl topAmerican Basswood body

• fretboard

  Rosewood fretboardMother of Pearl dot inlay

• fret

  Jumbo Stainless Steel frets

• number of frets

  24

• bridge

  Gotoh® T1502 bridge

• string space

  10.5mm

• neck pickup

  Seymour Duncan® Hyperion (H) neck pickupPassive/Alnico

• bridge pickup

  Seymour Duncan® Hyperion™ (H) bridge pickupPassive/Alnico

• factory tuning

  1E,2B,3G,4D,5A,6E

• strings

  D'Addario® EXL110

• string gauge

  .010/.013/.017/.026/.036/.046

• nut

  Graph Tech® nut

• hardware color

  Gold

NECK DIMENSIONS

• • Scale :

    648mm/25.5"

  • a : Width

    42mm at NUT

  • b : Width

    57mm at 24F

  • c : Thickness

    20.5mm at 1F

  • d : Thickness

    22.5mm at 12F

  • Radius :

    305mmR

SWITCHING SYSTEM

CONTROLS

Features

Rosewood fretboard

Rosewood provides a well-balanced solid tone with a focused mid range.

Luminescent side dot inlays

The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

Gotoh® MG-T locking machine heads

The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

Poplar Burl top / American Basswood body

The Poplar Burl top featuring an exotic wood grain and the American Basswood body deliver a natural and flat tone.

Oval C Roasted Maple neck

Heat-treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes.

Gotoh® T1502 tremolo bridge

The T1502 tremolo bridge features steel saddles and a die-cast zinc tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.

dyna-MIX10 switching system w/Alter switch

The dyna-MIX 10 offers ten sound variations and can easily switch from humbucker and single coil modes with the mini switch. The power Tap mode provides a realistic single coil sound despite its two humbucker pickup layout.

Seymour Duncan® Hyperion™ Pickups

Seymour Duncan® Hyperion™ Pickups feature a moderate output through Alnico-5 magnets to keep the clarity of the fundamental tone when using a distortion sound, and to deliver a clear pick attack. From treble to bass, the overall tonal balance is evenly adjusted., and works well with various effect pedals.

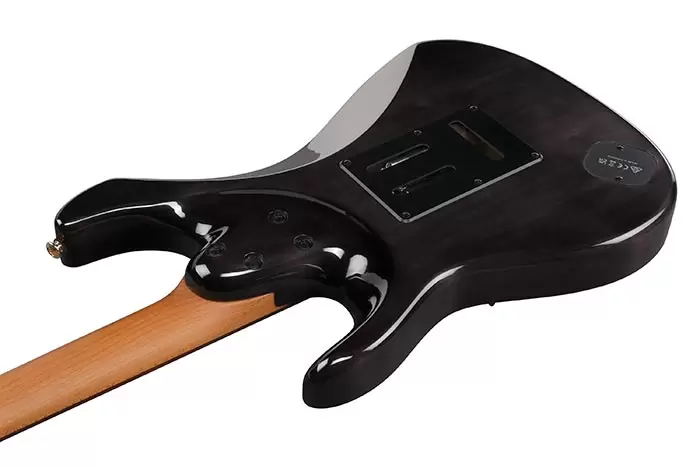

Ergonomic rear body contour

A shallow body back contour and a big forearm contour make the guitar body fit the player naturally, thus increasing playing comfort. The AZ body has a deep waist and different radii on each body edge curve, making it easier to play in both standing or sitting positions.

Super All Access Neck Joint

The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.
