SPECS

• body shape
• Asymmetrical Jumbo body
• bracing
• Thermo Aged™ Spruce Modified X-M Bracing
• top
• Thermo Aged™ Solid Sitka Spruce top

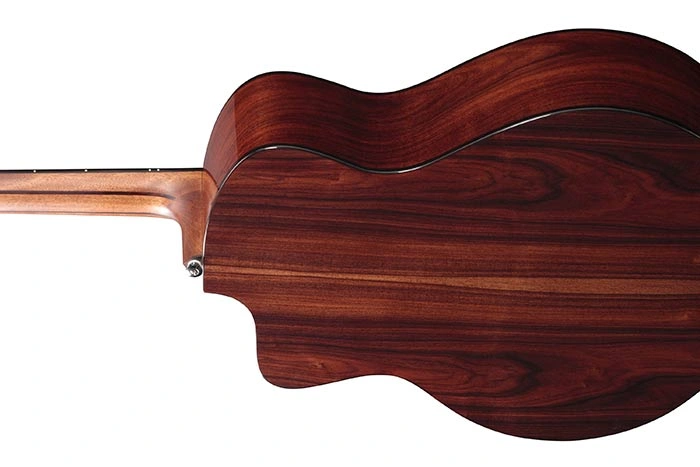

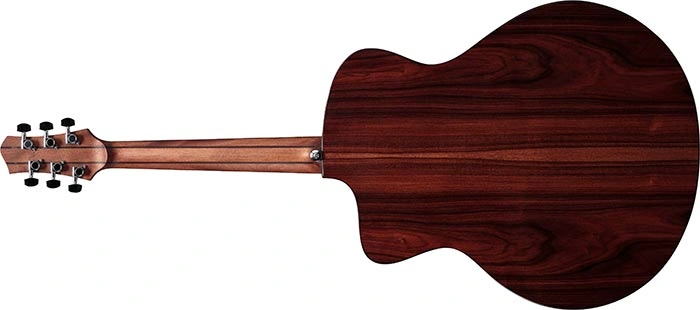

• back & sides
• Pau Ferro back & Pau Ferro sides
• neck
• JGMAfrican Mahogany/Pau Ferro 5pc neck
• fretboard
• Macassar Ebony fretboard
• bridge
• Macassar Ebony top loading bridge
• body binding
• Macassar Ebony body binding with rounded body edge
• top board purfling
• Wooden purfling
• soundhole rosette
• Specially Designed Wooden

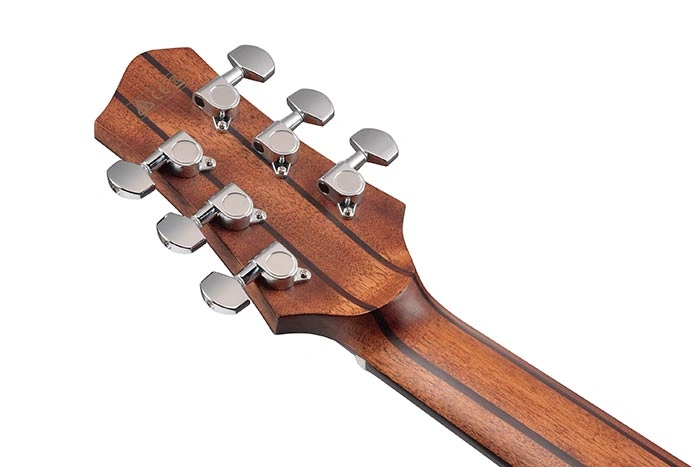

• tuning machine
• Chrome Die-cast tuners (18:1 gear ratio)
• nut material
• Bone
• number of frets
• 20
• saddle material
• Unbleached Oil-impregnated Bone
• strings
• D'Addario® XTAPB1256
• string gauge
• .012/.016/.025/.035/.045/.056
• string space
• 11.7mm
• factory tuning
• 1D,2A,3G,4D,5G,6C
• pickup
• Fishman® Rare Earth Mic Blend Active Soundhole, Tap
• preamp
• Fishman® PowerTap Earth Blend preamp
• output jack
• Dual Outputs (2 endpin jacks - 1 stereo/mono output capability built in (with strap button) - 1 mono flush mount)
• battery
• 9V x1

NECK DIMENSIONS

• • Scale :
  • 655mm/25.75"
  • a : Width
  • 45mm at NUT
  • b : Width
  • 60mm at 14F
  • c : Thickness
  • 20.5mm at 1F
  • d : Thickness
  • 22mm at 7F
  • Radius :
  • 400mmR

BODY DIMENSIONS

• • a : Length
  • 20 3/8"
  • b : Width
  • 17"
  • c : Max Depth
  • 4 7/8"

•

PREAMP

Features

5pc African Mahogany/Pau Ferro neck

The African Mahogany and Pau Ferro 5pc neck has enhanced durability.

Macassar Ebony fretboard

Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

Macassar Ebony top loading bridge

For a better percussive sound, the Macassar Ebony bridge features a top loading system without a bridgepin. It also offers a fast and easy method for string changes.

Rare Earth Mic Blend Active Soundhole pickup, Tap pickup

The combination of Fishman Rare Earth Mic Blend Active Soundhole pickup and Tap pickup offers a warmer, more natural acoustic tone with clarity of sounds.

PowerTap Earth Blend

Blending the Rare Earth Mic Blend Active Soundhole pickup with Tap pickup, Fishman PowerTap Earth Blend system allows the guitar to capture the string vibration through the whole body and neck, which provides a rich acoustic tone and a dynamic percussive sound from the body and neck.

Dual Outputs (Magnetic pickup/Contact pickup/Microphone outputs)

Plugged into the endpin jack only: Magnetic pickup + Contact pickup + Microphone with mixed output
Plugged into both the endpin jack and the mono flush mount endpin jack: Magnetic pickup, Contact pickup and Microphone running independently. (a TRS to TRS cable or a TRS to stereo ”Y” cable should be used). Endpin Jack = Magnetic pickup, Microphone output, Mono flush mount endpin jack = Contact pickup output

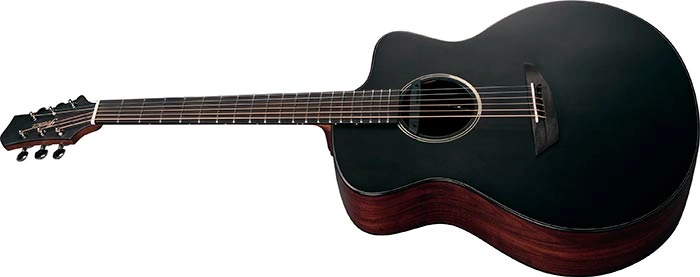

Asymmetric jumbo body

Developed for modern fingerstyle players, the asymmetric jumbo body features a low-end focused sound and tapping friendly shape

25 3/4 inch scale

A 25 3/4 inch scale helps to maintain proper tension and pitch even while down tuning, a technique modern finger players often utilize. This scale-length also delivers improved sustain.

Gig bag included

Ibanez Gig bags are made out of durable materials.
