body shape    AE body
bracing    X-M Bracing with a reinforcing wood plate for body tapping
top    Solid Sitka Spruce top

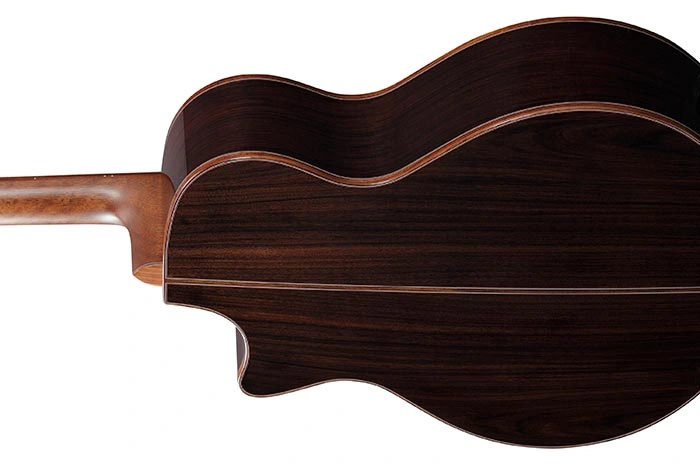

back & sides    Pau Ferro back & Pau Ferro sides
neck    Comfort Grip with Rounded Fretboard EdgeNyatoh neck
fretboard    Macassar Ebony fretboard
bridge    Macassar Ebony bridge
body binding    Pau Ferro body binding
top board purfling    Wooden Multi purfling
inlay    Specially designed Mother Of Pearl inlay
soundhole rosette    Specially designed Wooden and Mother Of Pearl rosette

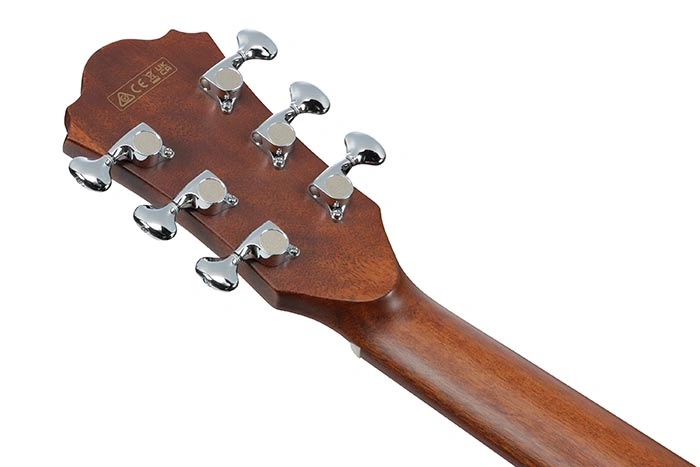

tuning machine    Gotoh® Chrome SGS510Z tuners (18:1 gear ratio)
number of frets    20
saddle material    Compensated Bone saddle
bridge pins    Ibanez Advantage™
strings    D'Addario® XTAPB1253
string gauge    .012/.016/.024/.032/.042/.053
string space    11mm
factory tuning    1E,2B,3G,4D,5A,6E
pickup    Fishman® Rare Earth Mic Blend Active Soundhole pickup
preamp    Fishman® Rare Earth Mic Blend Active Soundhole Pickup preamp
output jack    1/4" Endpin Jack

NECK DIMENSIONS
Scale :    651mm
a : Width    44mm at NUT
b : Width    55mm at 14F
c : Thickness    20mm at 1F
d : Thickness    21mm at 7F
Radius :    400mmR

BODY DIMENSIONS
a : Length    20 1/8"
b : Width    16 1/4"
c : Max Depth    4 3/4"
