SPECS

• neck type

  AZ7 Oval CRoasted Maple neck

• top/back/body

  Quilted Maple topAmerican Basswood body

• fretboard

  Rosewood fretboardMother of Pearl dot inlay

• fret

  Jumbo Stainless Steel frets

• number of frets

  24

• neck pickup

  Seymour Duncan® Hyperion™ 7 (S) neck pickupPassive/Alnico

• middle pickup

  Seymour Duncan® Hyperion™ 7 (S) middle pickupPassive/Alnico

• bridge pickup

  Seymour Duncan® Hyperion™ 7 (H) bridge pickupPassive/Alnico

• factory tuning

  1E,2B,3G,4D,5A,6E,7B

• strings

  D'Addario® EXL110-7

• string gauge

  .010/.013/.017/.026/.036/.046/.059

• hardware color

  Chrome

NECK DIMENSIONS

• • Scale :

    648mm/25.5"

  • a : Width

    47mm at NUT

  • b : Width

    66mm at 24F

  • c : Thickness

    20.5mm at 1F

  • d : Thickness

    22.5mm at 12F

  • Radius :

    305mmR

SWITCHING SYSTEM

CONTROLS

Features

Rosewood fretboard

Rosewood provides a well-balanced solid tone with a focused mid range.

Luminescent side dot inlays

The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

Gotoh® MG-T locking machine heads

The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

Jumbo Stainless Steel frets

Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response and effortless articulation when playing chords and clear tone when playing single notes.

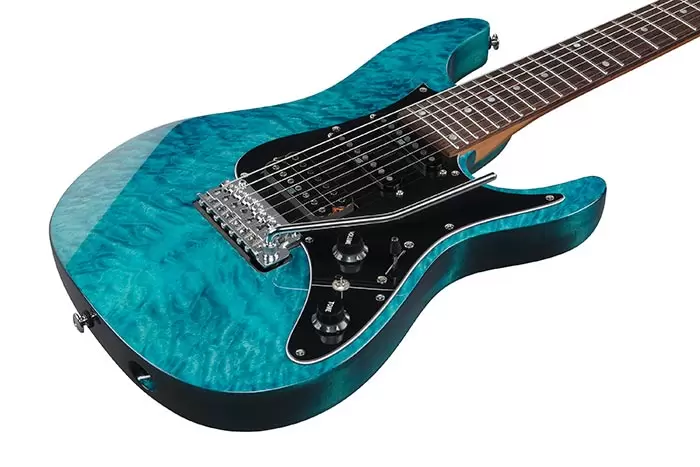

Quilted Maple top / American Basswood body

The Quilted Maple top sonically enriches the response for picking and the American Basswood body delivers a natural and flat tone.

Gotoh® T1572S tremolo

The T1572S tremolo bridge features steel saddles and a steel tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.

Oval C Roasted Maple neck

Heat-treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes.

dyna-MIX 9 switching system w/Alter switch

dyna-MIX 9 offers nine sound variations, and can easily switch between humbucker and single coil modes with just the mini switch. One mode is even able to simulate a humbucker sound from the combination of the 2 single coil pickups.

Seymour Duncan® Hyperion™ Pickups

Seymour Duncan® Hyperion™ Pickups feature a moderate output through Alnico-5 magnets to keep the clarity of the fundamental tone when using a distortion sound, and to deliver a clear pick attack. From treble to bass, the overall tonal balance is evenly adjusted., and works well with various effect pedals.

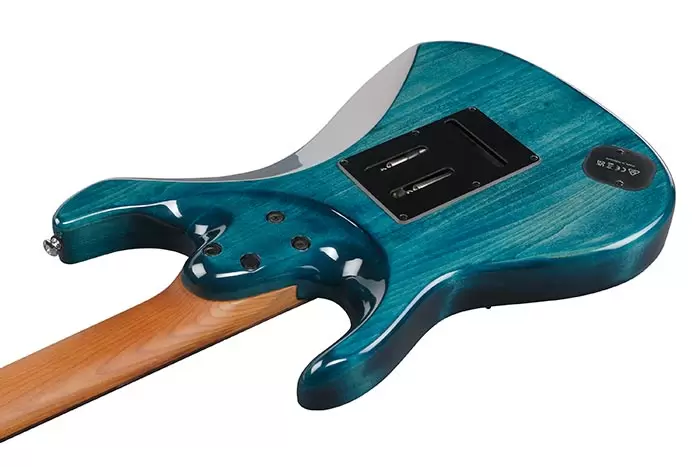

Ergonomic rear body contour

A shallow body back contour and a big forearm contour make the guitar body fit the player naturally, thus increasing playing comfort. The AZ body has a deep waist and different radii on each body edge curve, making it easier to play in both standing or sitting positions.

Super All Access Neck Joint

The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.
