SPECS

• neck type
• AF Artstar3pc Nyatoh/MapleSet-in neck
• top/back/side
• Spruce top Flamed Maple backFlamed Maple sides
• fretboard
• Bound Macassar Ebony fretboardAcrylic & Abalone block inlay
• fret
• Medium fretsArtstar fret edge treatment
• number of frets
• 20
• bridge
• Rosewood bridge
• string space
• 10.4mm
• tailpiece
• VT14 w/AFC wood cover tailpiece
• neck pickup
• Super 58 (H) neck pickupPassive/Alnico
• bridge pickup
• Super 58 (H) bridge pickupPassive/Alnico
• factory tuning
• 1E,2B,3G,4D,5A,6E
• strings
• D'Addario® ECG24 Flatwound
• string gauge
• .011/.015/.022w/.030/.040/.050
• nut
• Bone nut
• hardware color
• Gold

NECK DIMENSIONS

• • Scale :
  • 628mm/24.7"
  • a : Width
  • 43mm at NUT
  • b : Width
  • 56.3mm at 20F
  • c : Thickness
  • 21mm at 1F
  • d : Thickness
  • 24mm at 9F
  • Radius :
  • 305mmR

BODY DIMENSIONS

• • a : Length
  • 19 1/2"
  • b : Width
  • 15 3/4"
  • c : Max Depth
  • 3 5/8"

SWITCHING SYSTEM

CONTROLS

Features

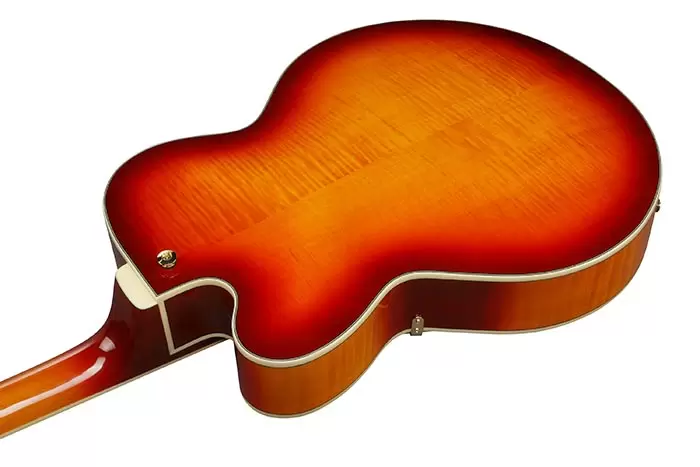

Spruce top / Flamed Maple back and sides

The Spruce top's smooth wood appearance enriches the response of your playing and the Flamed Maple back and sides provide a bright attack with a solid sound.

Rosewood bridge

VT14 tailpiece

The smooth VT14 tailpiece provides both great tuning stability and rich sustain.

Medium frets with Artstar fret edge treatment

Medium sized frets enhances the accuracy to your notes.
The Artstar fret edge treatment with spherical surface processing offers super smooth performance.

3pc Nyatoh/Maple neck

The 3pc Nyatoh/Maple Neck provides a rich mid-low end and great resonance.

Macassar Ebony fretboard

Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

Super 58 Pickups

Super 58 pickups feature moderate output and vintage tone.
