SPEC
• neck type
• AZ Oval C / S-TECH WOOD Roasted Maple neck
• top/back/body
• Alder body
• fretboard
• Rosewood fretboard Mother of Pearl dot inlay
• fret
• Jumbo Stainless Steel frets Prestige fret edge treatment
• number of frets
• 22
• bridge
• Gotoh® T1702B bridge
• string space
• 10.5mm
• neck pickup
• Seymour Duncan® Fortuna™  (S) neck pickup (Passive/Alnico)
• middle pickup
• Seymour Duncan® Fortuna™ (S) middle pickup (Passive/Alnico)
• bridge pickup
• Seymour Duncan® Hyperion™ (H) bridge pickup (Passive/Alnico)
• factory tuning
• 1E,2B,3G,4D,5A,6E
• strings
• D'Addario® EXL110
• string gauge
• .010/.013/.017/.026/.036/.046
• nut
• Bone nut
• hardware color
• Gold

NECK DIMENSIONS

o Scale :648mm/25.5"
o a : Width 42mm at NUT
o b : Width 56.4mm at 22F
o c : Thickness 20.5mm at 1F
o d : Thickness 22.5mm at 12F
o Radius :228mmR to 305mmR COMPOUND

SWITCHING SYSTEM

CONTROLS

Features

Rosewood fretboard
Rosewood provides a well-balanced solid tone with a focused mid range.

Jumbo stainless steel frets / Prestige fret edge treatment

The stainless steel frets offer excellent corrosion resistance. The wide and tall soundpost type provides rapid feedback, producing excellent sound when playing chords and clear tone when playing single notes.

The Prestige fret edge treatment ensures a smooth playing experience.

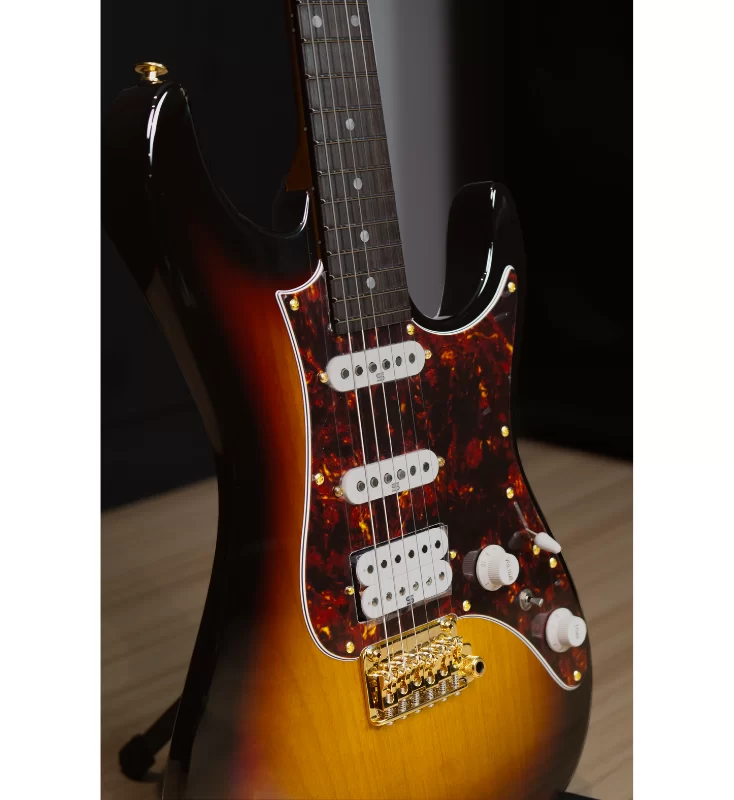

Seymour Duncan® Fortuna™ / Seymour Duncan® Hyperion™ pickups

Seymour Duncan® Fortuna™ neck & middle pickups deliver a natural clean voicing which accurately reflect subtle playing nuances, while Seymour Duncan® Hyperion™ bridge humbucker features a moderate output through Alnico-5 magnets to keep the clarity of the fundamental tone when using distortion and to deliver a clear pick attack. From treble to bass, the overall tonal balance is evenly adjusted and works well with various effect pedals.

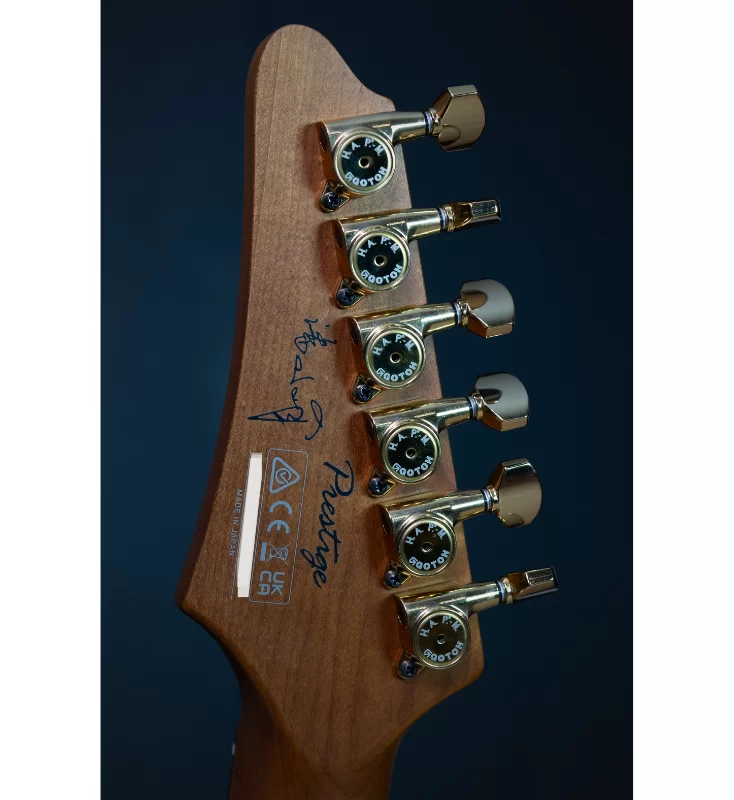

Gotoh® Magnum Lock w/H.A.P. machine heads

GOTOH® MAGNUM LOCK® machine heads have an established reputation for tuning stability. Its H. A. P® (Height Adjustable Post). system allows for the adjustment of string posts for the appropriate tension of each string.

Gotoh®T1702B Bridge

The T1702B tremolo bridge provides a quick response and improved tonal clarity. The 10.5mm string action allows for easy playing on the strings, and its snap-on construction facilitates the attachment of the tremolo arm. The tremolo block and bridge are made of brass, contributing to better overall resonance

dyna-MIX9 switching system with Alter Switch
The dyna-MIX 9 offers nine sound variations and can switch between humbucker and single coil modes with just a flick of the mini switch. One mode even simulates a humbucking sound from the combination of two single coil pickups.

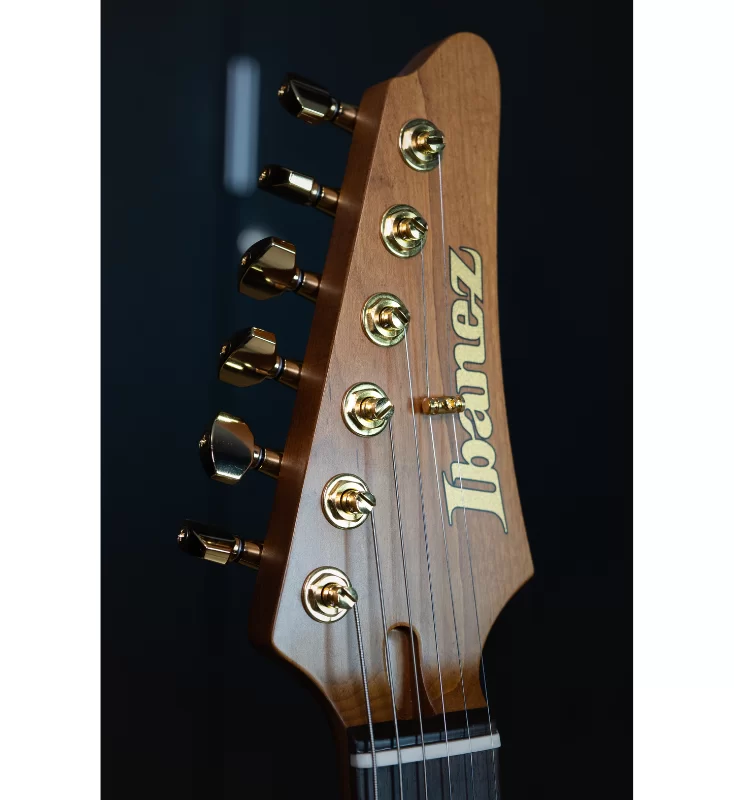

Oval C S-TECH WOOD Roasted Maple neck
S-TECH special roasted treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes. The neck is sealed with an oil finish which helps make it feel similar to a well-played guitar neck.


Luminlay side dot inlays
The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
