SPECS

• neck type
• JIVA5pc Maple/Wenge neck
• top/back/body
• Quilted Maple topAfrican Mahogany body
• fretboard
• Bound Ebony fretboardBeaten Path inlay
• fret
• Jumbo fretsPrestige fret edge treatment
• number of frets
• 24
• bridge
• Edge-Zero w/ZPS3 bridge
• string space
• 10.8mm
• neck pickup
• DiMarzio® Pandemonium™ (H) neck pickupPassive/Ceramic
• middle pickup
• DiMarzio® True Velvet™ (S) middle pickupPassive/Alnico
• bridge pickup
• DiMarzio® Pandemonium™ (H) bridge pickupPassive/Ceramic
• factory tuning
• 1E,2B,3G,4D,5A,6E
• strings
• D'Addario® EXL120
• string gauge
• .009/.011/.016/.024/.032/.042
• nut
• Locking nut
• hardware color
• Cosmo black

NECK DIMENSIONS

• • Scale :
  • 648mm/25.5"
  • a : Width
  • 43mm at NUT
  • b : Width
  • 58mm at 24F
  • c : Thickness
  • 17mm at 1F
  • d : Thickness
  • 19mm at 12F
  • Radius :
  • 430mmR

SWITCHING SYSTEM

CONTROLS

Features

5pc Maple/Wenge neck

The 5pc Maple/Wenge Neck with excellent strength provides an enriched resonance.

Ebony fretboard

Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

Quilted Maple top / African Mahogany body

The Quilted Maple top sonically enriches the response for picking. The African Mahogany body delivers a rich mid-low end.

DiMarzio® Pandemonium™ / DiMarzio® True Velvet™ pickups

DiMarzio® Pandemonium™ pickups have a modern take on a classic rock sound that Nita desires.

Gotoh® machine heads

Gotoh® machine heads provide super precision, smooth feel, and minimal back lush.

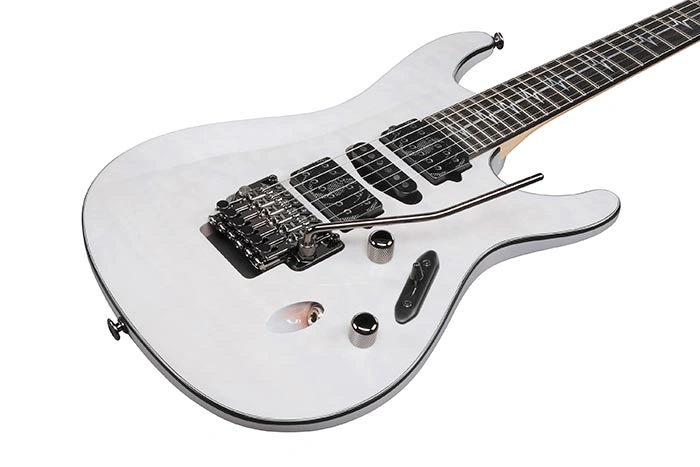

Edge-Zero tremolo with Zero Point System

The Edge-Zero has a sharp knife-edge for extremely accurate tremolo playing. This tremolo also uses Ibanez innovations to keep string action constant and the bridge surface smooth. The specially-designed arm socket prevents unnecessary wobble while providing full control over the arm's torque.
In addtion, the zero point system offers much greater tuning stability.

Luminlay side dot inlays

The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
