SPECS

• neck type
• BTB5 for Multi Scale5pc Maple/Walnut w/Graphite reinforcement rodsNeck-through
• top/back/body
• Okoume wing body
• fretboard
• Bound Panga Panga fretboardAbalone dot inlay
• fret
• Medium Stainless Steel frets
• number of frets
• 24 (+ zero fret)
• bridge
• MR5S bridge
• string space
• 18mm
• neck pickup
• T1 neck pickupPassive
• bridge pickup
• T1 bridge pickupPassive
• equaliser
• Ibanez Custom Electronics 3-band EQ w/ EQ bypass switch (passive tone control on treble pot) & 3-way Mid frequency switch
• factory tuning
• 1G,2D,3A,4E,5B
• strings
• D'Addario® NYXL Single Strings (NYXLB045, NYXLB055, NYXLB080, NYXLB100MS, NYXLB130MS)
• string gauge
• .045/.055/.080/.100MS/.130MS
• hardware color
• Black

NECK DIMENSIONS

• • Scale :
  • 939.8mm/37" - 889mm/35"
  • a : Width
  • 47mm at NUT
  • b : Width
  • 75mm at 24F
  • c : Thickness
  • 20mm at 1F
  • d : Thickness
  • 22mm at 12F
  • Radius :
  • 400mmR

CONTROLS

FREQUENCY RESPONSE

Features

Okoume wing body

The Okoume wing body provides a bright and solid sound.

Medium Stainless Steel frets

The Stainless Steel frets are durable and long-lasting.

T1 pickups

The T1 pickup is a humbucker featuring two separate, individually mounted coils that provides tight bass response, punchy mid-range, and clear high-end. It offers flexible voicing suitable for various genres, and the height of each coil can be set individually for highly nuanced adjustments to the tone. On top of its great sound, the physical design features rounded edges for enhanced ergonomic comfort when using the pickup as a thumb rest. Moreover, the individually mounted coils allow them to be positioned slightly offset from one another. This makes it so the surface of the pickup where the player rests their thumb is directly parallel with the strings, which is not typical with most multi scale basses. This design greatly enhances the comfort and playability of the instrument.

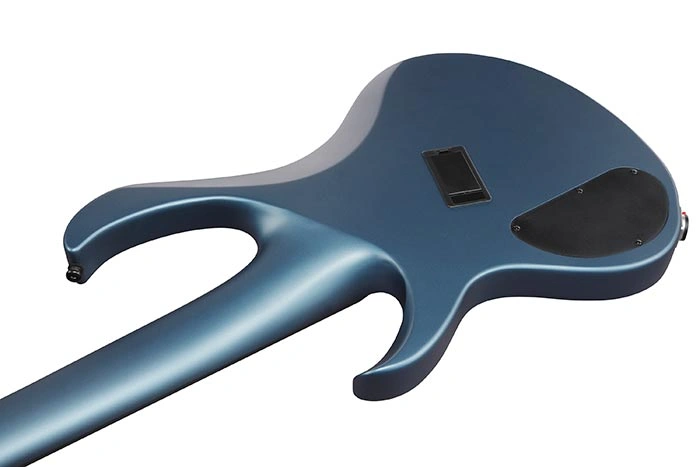

Neck-through construction

The neck-through construction contributes to massive sustain and smooth access to high fretboard positions.
