body shape    AE body
bracing    X-M Bracing
top    Solid Sitka Spruce top
back & sides    Okoume back & Okoume sides
neck    Comfort Grip with Rounded Fretboard EdgeNyatoh neck
fretboard    Pau Ferro fretboard
bridge    Pau Ferro scalloped bridge
inlay    Specially designed Wooden Vine inlay
soundhole rosette    Abalone and Wooden

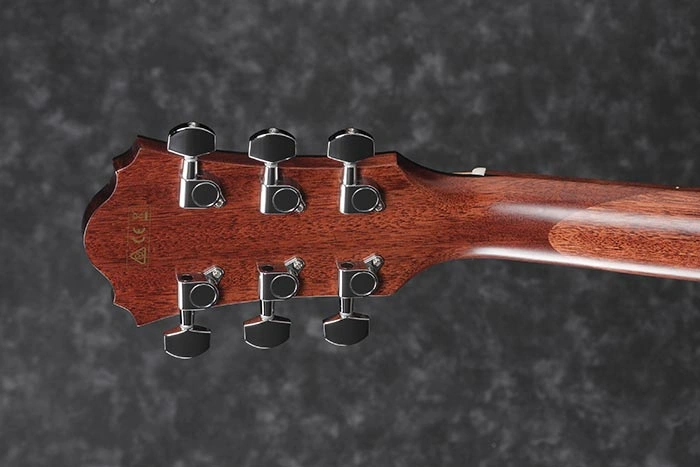

tuning machine    Chrome Die-cast tuners (18:1 gear ratio)
nut material    Bone
number of frets    20
saddle material    Compensated Bone
bridge pins    Ebony
strings    D'Addario® XTAPB1670
string gauge    .016/.022/.029/.048/.060/.070
string space    11mm
factory tuning    1B,2F#,3D,4A,5E,6B
pickup    Ibanez AP11 Magnetic
preamp    Ibanez Custom Electronics w/ Volume and Tone Control
output jack    1/4" Endpin Jack

Scale :    685.7mm/27"
a : Width    45mm at NUT
b : Width    56mm at 14F
c : Thickness    21mm at 1F
d : Thickness    22mm at 7F
Radius :    400mmR

a : Length    20 1/8"
b : Width    16 1/4"
c : Max Depth    4 3/4"
