​​​​SPECS

• neck type
• AZ Oval CRoasted Maple neck
• top/back/body
• Quilted Maple topAmerican Basswood body
• fretboard
• Ebony fretboardMother of Pearl dot inlay
• fret
• Jumbo Stainless Steel frets
• number of frets
• 24
• bridge
• Gotoh® T1502 bridge
• string space
• 10.5mm
• neck pickup
• DiMarzio® Air Norton™ (H) neck pickupPassive/Alnico
• middle pickup
• DiMarzio® True Velvet™ (S) middle pickupPassive/Alnico
• bridge pickup
• DiMarzio® The Tone Zone® (H) bridge pickupPassive/Alnico
• factory tuning
• 1E,2B,3G,4D,5A,6E
• strings
• D'Addario® EXL110
• string gauge
• .010/.013/.017/.026/.036/.046
• nut
• Graph Tech® nut
• hardware color
• Gold

NECK DIMENSIONS

• • Scale :
  • 648mm/25.5"
  • a : Width
  • 42mm at NUT
  • b : Width
  • 57mm at 24F
  • c : Thickness
  • 20.5mm at 1F
  • d : Thickness
  • 22.5mm at 12F
  • Radius :
  • 305mmR

SWITCHING SYSTEM

CONTROLS

Features

DiMarzio® Air Norton™ / True Velvet™ / The Tone Zone® pickups

The DiMarzio® Air Norton™, True Velvet™ and Tone Zone® pickups offer depth, warmth and rich dynamics when combined with the 5-way pickup switch.

Ebony fretboard

Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

Luminescent side dot inlays

The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

Gotoh® MG-T locking machine heads

The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

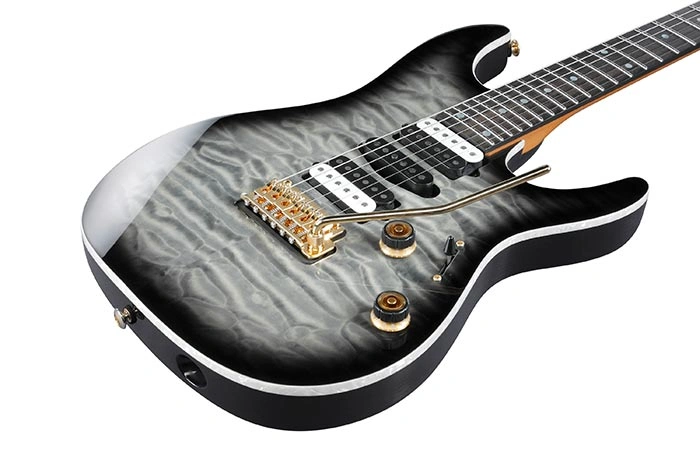

Quilted Maple top / American Basswood body

The Quilted Maple top sonically enriches the response for picking and the American Basswood body delivers a natural and flat tone.

Oval C Roasted Maple neck

Heat-treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes.

Gotoh® T1502 tremolo bridge

The T1502 tremolo bridge features steel saddles and a die-cast zinc tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.

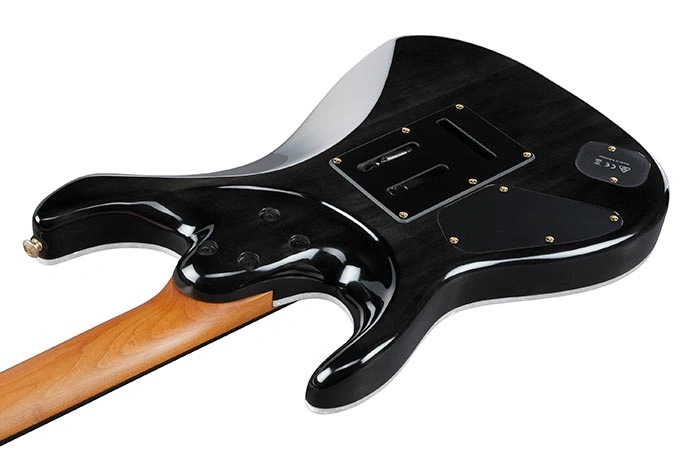

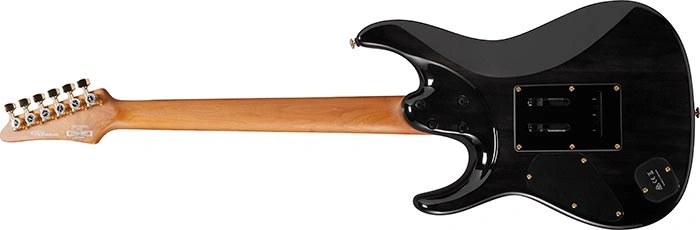

Ergonomic rear body contour

A shallow body back contour and a big forearm contour make the guitar body fit the player naturally, thus increasing playing comfort. The AZ body has a deep waist and different radii on each body edge curve, making it easier to play in both standing or sitting positions.

Super All Access Neck Joint

The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.
