SPECS

• neck type
• JSMAfrican Mahoganyset-in neck
• top/back/side
• Figured Anigre top Figured Anigre backFigured Anigre sides
• fretboard
• Bound Ebony fretboardAcrylic & Abalone block inlay
• fret
• Jumbo fretsPrestige fret edge treatmentnumber of frets
• 22
• bridge
• Gotoh® 510BN bridge
• string space
• 10.4mm
• tailpiece
• Gotoh® GE101A tailpiece
• neck pickup
• Super 58 (H) neck pickupPassive/Alnico
• bridge pickup
• Super 58 (H) bridge pickupPassive/Alnico
• factory tuning
• 1E,2B,3G,4D,5A,6E
• strings
• D'Addario®
• string gauge
• .013/.016/.022/.032/.042/.052
• nut
• Half-Bone/Half-Brass nut
• hardware color
• Gold

NECK DIMENSIONS

• • Scale :
  • 628mm/24.7"
  • a : Width
  • 43.5mm at NUT
  • b : Width
  • 57mm at 22F
  • c : Thickness
  • 20.2mm at 1F
  • d : Thickness
  • 23.3mm at 12F
  • Radius :
  • 184mm to 250mm COMPOUND

BODY DIMENSIONS

• • a : Length
  • 18 1/4"
  • b : Width
  • 15 3/4"
  • c : Max Depth
  • 2 5/8"

SWITCHING SYSTEM

CONTROLS

Features

African Mahogany neck

The African Mahogany used as neck wood delivers a rich mid-low end.

Jumbo frets with Prestige fret edge treatment

The wide and tall fret-type offers a quick response, good articulation when playing chords and clear tone when playing single notes. Prestige Fret Edge Treatment guarantees effortlessly fast playing.

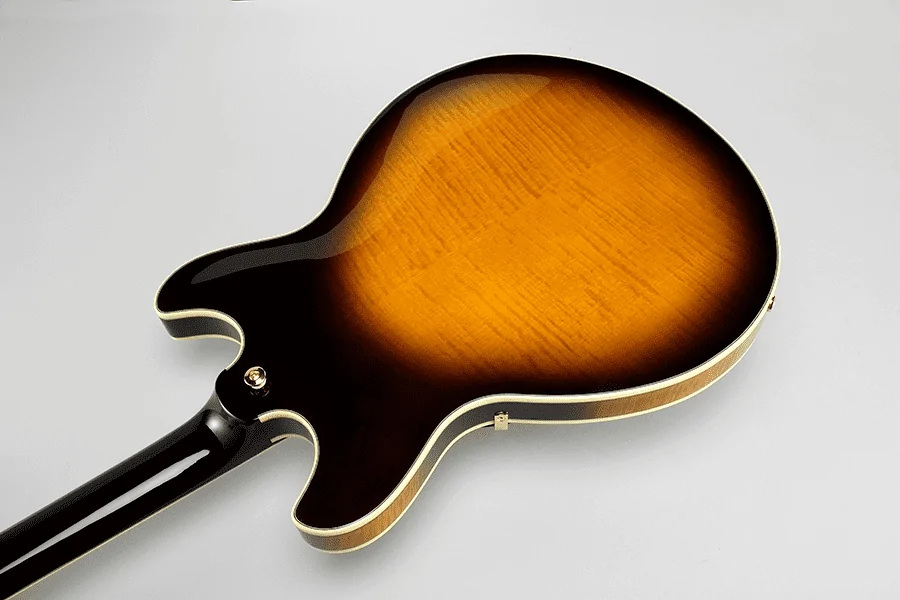

Figured Anigre top / Figured Anigre back and sides

Figured Anigre features a beautiful wood grain which produces a rich mid-range and smooth attack in the high end.

Half-Bone/Half-Brass Nut

Classic Ibanez half-bone, half brass nut on the magical John Scofield Signature JSM100 provides a balance of highs and lows.

Gotoh® machine heads

Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.

Super 58 pickups

Super 58 pickups on John Scofield's Signature JSM100 produce classic, warm and versatile tones.

Ebony fretboard

Ebony produces a tight low end and mid-range with a defined high end attack. It also delivers quick response and rich sustain.

Compound Radius Fretboard (184mm to 250mm) (JSM100)

Best of both worlds: its digitized compound radius fretboard is built to enhance both smooth chording and upper fret lead work.

Gotoh® 510BN bridge

The Gotoh® 510BN bridge is equipped with independent saddles that allow precise height adjustment for each string.

Gotoh® GE101A tailpiece

The stable Gotoh® GE101A tailpiece holds your strings in tune.
