SPECS

• neck type

  Parallel Wizard3pc Roasted Maple/Bubinga neck

• top/back/body

  Okoume body

• fretboard

  Ebony fretboardMother of Pearl Step off-set dot inlay

• fret

  Jumbo Stainless Steel frets

• number of frets

  24

• bridge

  Ibanez Mono-Tune bridge

• string space

  10.8mm

• neck pickup

  Q58 (H) neck pickupPassive/Ceramic

• bridge pickup

  Q58 (H) bridge pickupPassive/Ceramic

• factory tuning

  1E,2B,3G,4D,5A,6E

• strings

  D'Addario® EXL110

• string gauge

  .010/.013/.017/.026/.036/.046

• hardware color

  Black

NECK DIMENSIONS

• • Scale :

    648mm/25.5"

  • a : Width

    42mm at NUT

  • b : Width

    57mm at 24F

  • c : Thickness

    19mm at 1F

  • d : Thickness

    19mm at 12F

  • Radius :

    508mmR

SWITCHING SYSTEM

CONTROLS

Features

Parallel Wizard 3pc Roasted Maple/Bubinga neck

The Parallel Wizard neck is 19mm thick all the way through the entire length. It provides an amazing fretting-hand experience for the players who prefer their instrument held in a higher playing position. The 3pc Roasted Maple/Bubinga construction also offers excellent stability and long-term durability.

Ebony fretboard

Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

Jumbo Stainless Steel frets

Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response and effortless articulation when playing chords and clear tone when playing single notes.

Okoume body

The Okoume body provides a bright and solid sound.

Q58 H-H pickups

Q58 pickups are designed specifically for use in headless guitars. They provide a clearly defined sound, facilitating excellent tonal balance through all frequencies. The lows are powerful without being muddy, and the highs are bright and clear, but never harsh. As a result, every single note within the chord structure is well defined, and clearly audible. These pickups, with their tonal balance, and extremely low noise performance, work extremely well with both digital and analog effects.

Custom string lock

This custom string lock is one-piece unit that features very simple construction. This means the hardware requires less maintenance, is highly durable, and allows for very easy string changes. Additionally, no proprietary string is required, so you can continue to use your favorite gauge and brand.

Mono-Tune bridges

The Mono-Tune bridges offer a wide intonation range so that you can easily set the instrument up for tuning down a whole step or even further. The string height is also easily adjustable, and each saddle generally has less material, which leads to more natural and organic tone.

dyna-MIX10 switching system with Alter Switch

The dyna-MIX 10 offers ten sound variations and can easily switch from humbucker and single coil modes with the mini switch. The power Tap mode provides a realistic single coil sound despite its two humbucker pickup layout.

Slanted frets

All of the frets are equally slanted at an 8-degree angle. Many contemporary players tend to favor a much higher playing positon to execute more effectively, highly technical and intricate techniques like tapping, finger style, and even occasional bass-inspired slap riff. This higher position results in the four fretting fingers naturally tilting slightly inwards. This 8-degree inward tilt of the frets perfectly accommodates this and offers a more natural feeling and comfortably playing guitar.

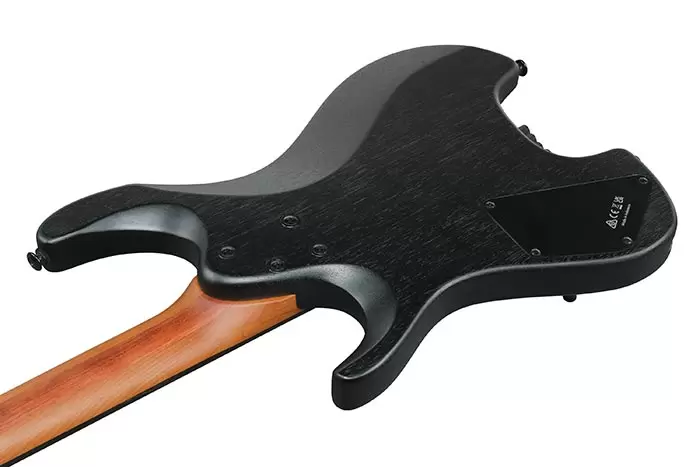

Ergonomic body design

The body features a number of strategically placed curves on both the top and back of the instrument. This complex, yet sophisticated design provides maximum playing comfort.

Compact and light-weight, yet resonant body

While it is really compact and light-weight, its non-chambered, solid body provides great sound with rich woody tones.

Luminescent side dot inlays

The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
