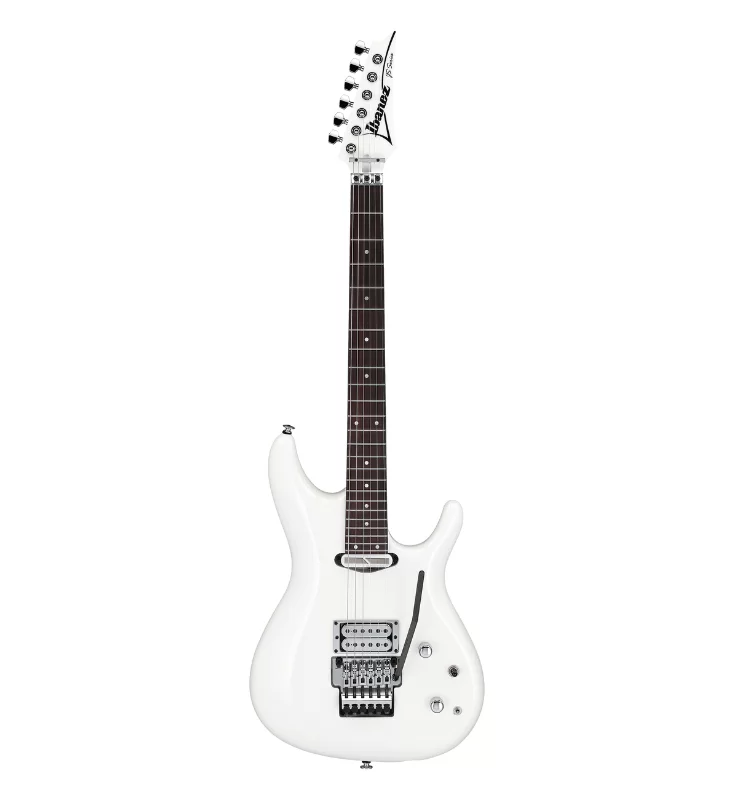

SPECS

• neck type
• JS3pc Maple/Bubinga neck
• top/back/body
• Basswood body
• fretboard
• Rosewood fretboardMother of Pearl dot inlay
• fret
• Medium fretsPrestige fret edge treatment
• number of frets
• 24
• bridge
• Edge bridge
• string space
• 10.8mm
• neck pickup
• SUSTAINIAC® Driver neck pickup
• bridge pickup
• DiMarzio® Satchur8™ (H) bridge pickupPassive/Alnico
• factory tuning
• 1E,2B,3G,4D,5A,6E
• strings
• D'Addario® EXL120
• string gauge
• .009/.011/.016/.024/.032/.042
• nut
• Locking nut
• hardware color
• Chrome

NECK DIMENSIONS

• • Scale :
  • 648mm/25.5"
  • a : Width
  • 42.8mm at NUT
  • b : Width
  • 56.4mm at 21F
  • c : Thickness
  • 20mm at 1F
  • d : Thickness
  • 22.3mm at 12F
  • Radius :
  • 250mmR

SWITCHING SYSTEM

CONTROLS

Features

JS 3pc Maple/Bubinga neck

JS features Maple/Bubinga neck. The Bubinga stripe provides stability and longer sustain.

24 Frets

High-pass Filter

A high pass filter on volume pots maintains highs at low volumes.

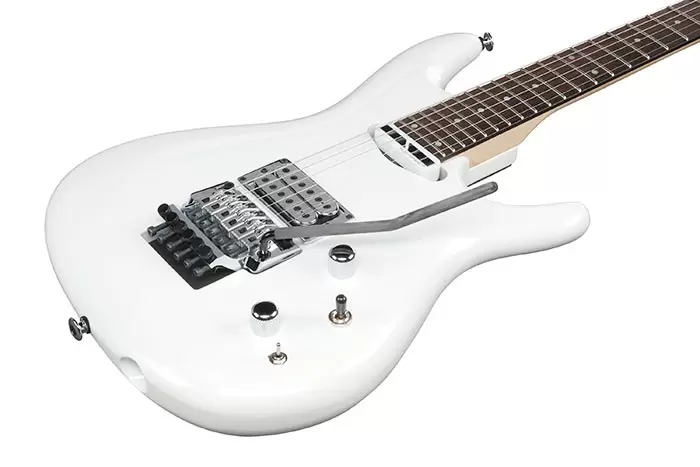

JS/Edge Tremolo

The legendary, original Edge tremolo bridge is back, always Joe's favorite in feel and tone.

DiMarzio® Satchur8™ pickup

Newly developed DiMarzio® Satchur8™ pickup fully supports Joe's versatile playing style and massive sound.

3 way Sustainiac mode selector

Normal: Sustains the fundamental
Mix: Sustains the fundamental and overtone
Harmonic: Sustains overtone
