SPECS

• body shape
• AEWC specially designed comfort body
• top
• Flamed Maple top
• back & sides
• Flamed Maple back & Flamed Maple sides
• neck
• AEWC Asymmetric comfortNyatoh neck
• fretboard
• Rosewood fretboard
• bridge
• Rosewood AEWC original top loading bridge
• inlay
• Off-set white dot inlay
• soundhole rosette
• Abalone

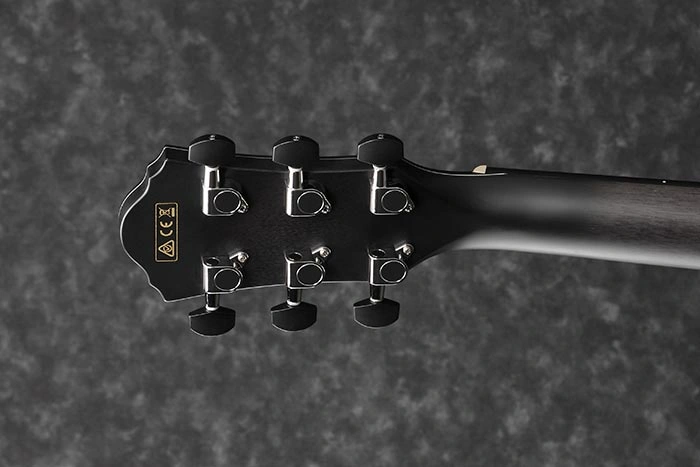

• tuning machine
• Chrome Die-cast tuners w/Black knobs (18:1 gear ratio)
• number of frets
• 20
• strings
• Ibanez IACS6C
• string gauge
• .012/.016/.024/.032/.042/.053
• string space
• 11mm
• factory tuning
• 1E,2B,3G,4D,5A,6E
• pickup
• Fishman® S-Core
• preamp
• Ibanez AEQ-SP2 preamp w/Onboard tuner
• output jack
• Balanced XLR & 1/4" outputs
• battery
• 9V x1

NECK DIMENSIONS

• • Scale :
  • 634mm/25"
  • a : Width
  • 43mm at NUT
  • b : Width
  • 55mm at 14F
  • c : Thickness
  • 20mm at 1F
  • d : Thickness
  • 21mm at 7F
  • Radius :
  • 400mmR

BODY DIMENSIONS

• • a : Length
  • 19 3/8"
  • b : Width
  • 15"
  • c : Max Depth
  • 4"

•

PREAMP

Features

Nyatoh neck

The Nyatoh neck provides a rich mid-low end.

Ibanez AEQ-SP2 preamp w/Onboard tuner

The Ibanez AEQ-SP2 Preamp delivers excellent sonic reproduction and control of tonal characteristics and easy operation

Flamed Maple top

The Flamed Maple top creates an attractive visual profile and offers a bright and tight tone.

Flamed Maple back and sides

Flamed Maple back and sides create an attractive visual profile and offer bright and tight tones.

Forearm contour

The specially designed forearm contour on the body top offers playing comfort and adds an elegant accent to its appearance.

Rosewood top loading bridge

Rosewood top loading bridge offers fast and easy string changing without bridge pins.
