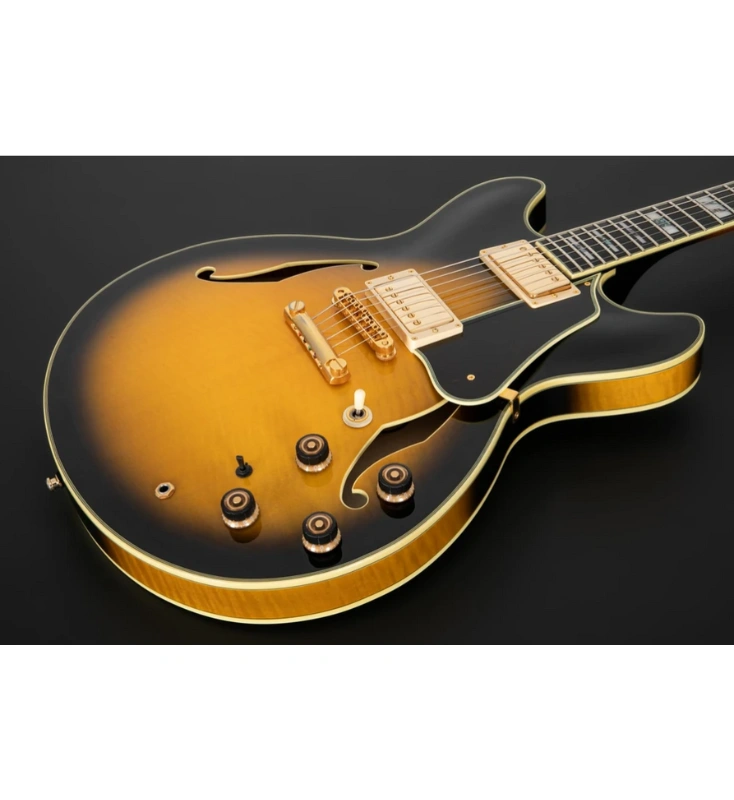

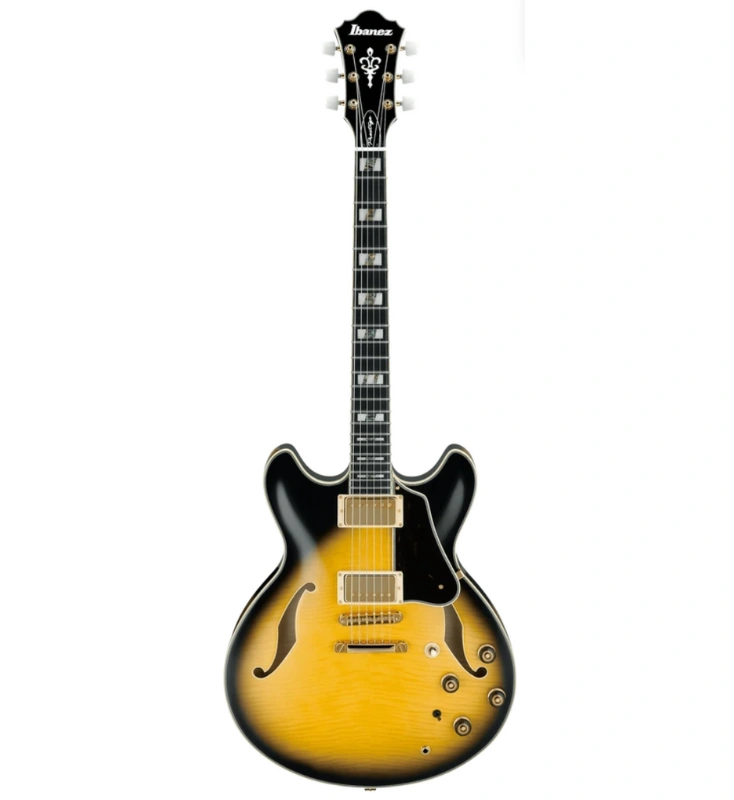

| Body |
Body type:
Hollow body |
Dimensions:
Length: 464mm / 18¼"
Width: 400mm / 15¾"
Depth: 67mm / 2⅝" |
Top:
Material:
2014–2017: Flamed maple (laminated)
2018: Figured anigre (laminated)
2019: Flamed maple (laminated)
2020: Figured anigre (laminated)
Binding: Ivory multi-ply |
Back/sides:
Material:
2014–2017: Flamed maple (laminated)
2018: Figured anigre (laminated)
2019: Flamed maple (laminated)
2020: Figured anigre (laminated) |
Neck joint:
Set-in |
Bridge:
Gotoh 510BN (10.4mm string spacing) |
Tailpiece:
Gotoh GE101A |
Pickguard:
Tortoise |
Knob style:
Sure Grip III |
Hardware color:
Gold |
|
| Neck |
Neck type:
Artstar AS Prestige |
Neck material:
2014–2017: 1-piece mahogany
2018–2020: 1-piece African mahogany |
Scale length:
628mm/ 24¾" |

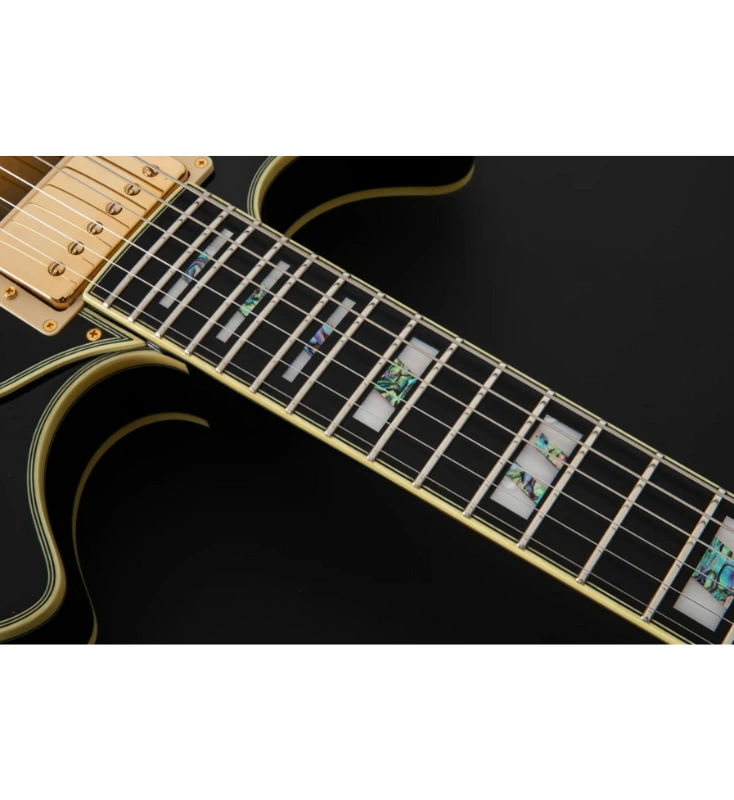

Fingerboard material:
Ebony w/ ivory binding |
Fingerboard inlays:
2014: Pearl & abalone split block
2015–2020: Acrylic & abalone split block |
Frets:
22 / medium (Prestige edge treatment) |
Nut:
Bone (43mm) |

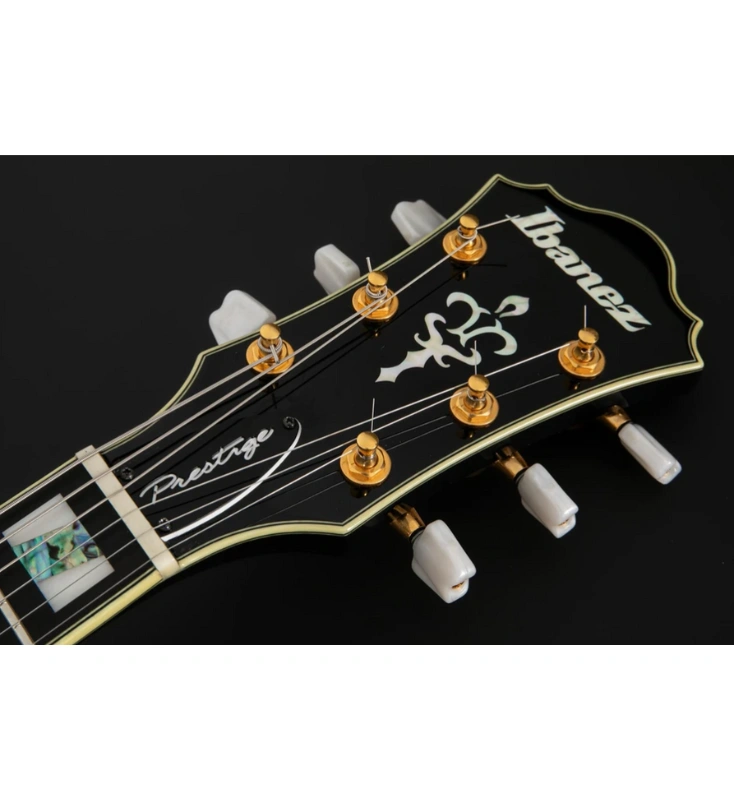

Machine heads:
Gotoh SG381 w/ ivory plastic buttons |
|
| Electronics/ Strings |
Pickup configuration:
HH |
Bridge pickup:
Ibanez Super 58 bridge (H) passive/alnico |
Neck pickup:
Ibanez Super 58 neck (H) passive/alnico |
Controls:
Two volumes / two tones / 3-way toggle pickup selector / Tri-sound switch for neck pickup |
Output jack:
¼" stereo box (face mounted) |
String gauge (factory):
.013/.016/.022/.032/.042/.052 |
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.) |
|
