SPECS

• neck type
• AS Expressionist3pc Nyatoh/Mapleset-in neck
• top/back/side
• Flamed Maple top Flamed Maple backFlamed Maple sides
• fretboard
• Bound Macassar Ebony fretboardAcrylic block inlay
• fret
• Medium frets
• number of frets
• 22
• bridge
• Gibraltar Performer bridge
• string space
• 10.5mm
• tailpiece
• Quik Change III tailpiece
• neck pickup
• Super 58 (H) neck pickupPassive/Alnico
• bridge pickup
• Super 58 (H) bridge pickupPassive/Alnico
• factory tuning
• 1E,2B,3G,4D,5A,6E
• strings
• D'Addario® EXL140
• string gauge
• .010/.013/.017/.030/.042/.052
• hardware color
• Gold

NECK DIMENSIONS

• • Scale :
  • 628mm/24.7"
  • a : Width
  • 43mm at NUT
  • b : Width
  • 57mm at 22F
  • c : Thickness
  • 21mm at 1F
  • d : Thickness
  • 24mm at 9F
  • Radius :
  • 305mmR

BODY DIMENSIONS

• • a : Length
  • 19 1/4"
  • b : Width
  • 15 3/4"
  • c : Max Depth
  • 2 5/8"

SWITCHING SYSTEM

CONTROLS

Features

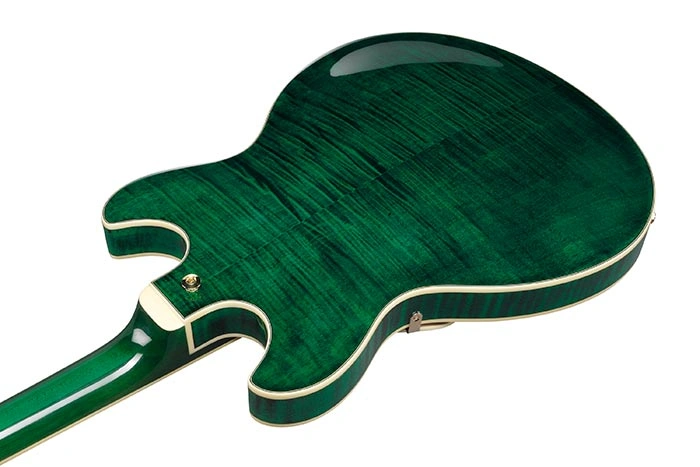

Flamed Maple top / Flamed Maple back and sides

The Flamed Maple offers a beautiful wood grain.

Gibraltar Performer bridge

The Gibraltar Performer bridge provides rich sustain and tuning stability. The low-positioned saddles promise comfortable playability.

3pc Nyatoh/Maple neck

The 3pc Nyatoh/Maple Neck provides a rich mid-low end and great resonance.

Macassar Ebony fretboard

Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

Quik Change III Tailpiece

The Quik Change III tailpiece enables faster and easier string changing.

Super 58 Pickups

Super 58 pickups feature moderate output and vintage tone.
