SPECS

• body shape
• FRH body
• bracing
• Fan Bracing for FRH
• top
• Solid Sitka Spruce top
• back & sides
• Sapele back & Sapele sides
• neck
• C shapeNyatohSet-in neck
• fretboard
• Rosewood fretboard
• bridge
• Rosewood bridge
• body binding
• Pearloid binding
• inlay
• Tree of Death inlay
• tuning machine
• Gold Classical tuners
• nut material
• Bone
• number of frets
• 22
• saddle material
• Bone
• strings
• D'Addario® XTC45
• string gauge
• .028/.032/.040/.028W/.035W/.044W
• string space
• 11.6mm
• factory tuning
• 1E,2B,3G,4D,5A,6E
• pickup
• Fishman® S-Core
• preamp
• Ibanez AEQ210TF preamp w/Onboard tuner
• output jack
• 1/4" output
• battery
• 9V x1

NECK DIMENSIONS

• • Scale :
  • 648mm/25.5"
  • a : Width
  • 46mm at NUT
  • b : Width
  • 58mm at 14F
  • c : Thickness
  • 21mm at 1F
  • d : Thickness
  • 22mm at 7F
  • Radius :
  • 400mmR

BODY DIMENSIONS

• • a : Length
  • 17 5/16"
  • b : Width
  • 14 3/16"
  • c : Max Depth
  • 1 15/16"

PREAMP

Features

Nyatoh neck

The Nyatoh neck provides a rich mid-low end.

Rosewood fretboard

Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

Solid Sitka Spruce top

Solid Sitka Spruce top provides an enormous frequency range that offers wave after wave of shimmering highs along with tight mids and a full-bodied low end.

Sapele back and sides

Sapele back and sides offer a full-bodied and warm mid-range and a bright tone.

Fishman® S-Core pickup & Ibanez AEQ210TF preamp w/Onboard tuner

Fishman® S-Core pickup accurately translates a full guitar sound to whatever amplification system you plug into. The AEQ210TF preamp provides the extra punch of on-board EQ, and the convenience of an easy-to-read digital tuner.

Rosewood bridge

Modified FR hollow body w/ Fan bracing

Its thin, compact body and superior high fret access contribute to the superb playability of this guitar.
It has less feedback as there’s no sound hole on the body top. Fan bracing, which is commonly used for classical guitars, allows this guitar to have a warm and natural nylon string sound.

46mm width nut / 400R fretboad radius

The combination of a narrow 46mm width nut and 400R fretboard radius offers easy fingering.

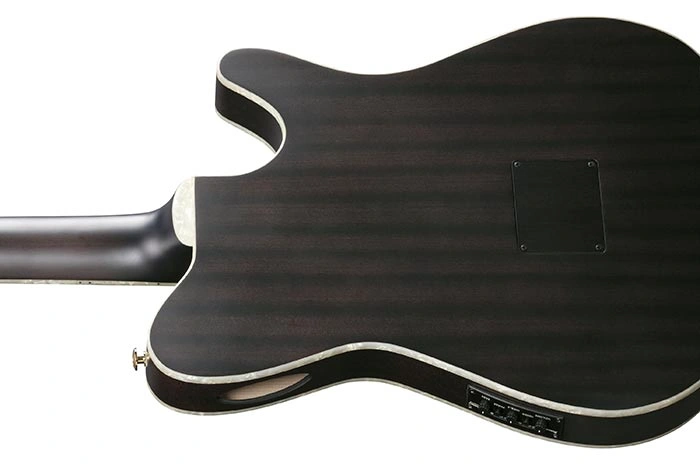

Side Sound Port

The sound port on the body side allows you to feel and hear the pure acoustic tone of this guitar more clearly and directly.

"Tree of Death" fingerboard Inlay

The name and the design of this fingerboard inlay are both nods to the iconic Ibanez "Tree of Life" inlay design, but with a twist.
