SPECS

• neck type
• AZ Oval CS-TECH WOOD Roasted Maple neck
• top/back/body
• Alder body
• fretboard
• Rosewood fretboardMother of Pearl dot inlay
• fret
• Jumbo Stainless Steel fretsPrestige fret edge treatment
• number of frets
• 22
• bridge
• Gotoh® T1502S bridge
• string space
• 10.5mm
• neck pickup
• Seymour Duncan® Fortuna™ (S) neck pickupPassive/Alnico
• middle pickup
• Seymour Duncan® Fortuna™ (S) middle pickupPassive/Alnico
• bridge pickup
• Seymour Duncan® Fortuna™ (S) bridge pickupPassive/Alnico
• factory tuning
• 1E,2B,3G,4D,5A,6E
• strings
• D'Addario® EXL110
• string gauge
• .010/.013/.017/.026/.036/.046
• nut
• Bone nut
• hardware color
• Chrome

NECK DIMENSIONS

• • Scale :
  • 648mm/25.5"
  • a : Width
  • 42mm at NUT
  • b : Width
  • 56.4mm at 22F
  • c : Thickness
  • 20.5mm at 1F
  • d : Thickness
  • 22.5mm at 12F
  • Radius :
  • 228mmR to 305mmR COMPOUND

SWITCHING SYSTEM

CONTROLS

Features

Alder body

The Alder body delivers a well-balanced bright tone, enriched resonance and sustain.

Seymour Duncan® Fortuna™ S-S-S pickups

Seymour Duncan® Fortuna™ Pickups feature a moderate output and natural clean voicing which accurately reflect subtle playing nuances. From treble to bass, the overall tonal balance is evenly adjusted and works well with various effect pedals.

Blender

With the simple turn of the blend knob, you can incorporate just the right amount of each pickup in a given position to achieve your desired sound.

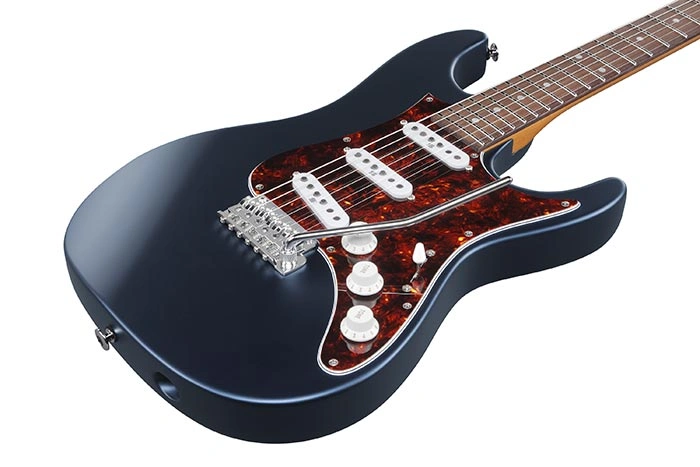

Gotoh® T1502S tremolo

The T1502S tremolo bridge features steel saddles and a steel tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.

Rosewood fretboard

Rosewood provides a well-balanced solid tone with a focused mid range.

Compound Radius Fretboard (228mm to 305mm)

Offering the best of both worlds, the digitized compound radius fretboard of the AZ-N is built to enhance both smooth chording and lead work in the upper register.

5 tremolo springs

Five tremolo springs allow string vibration to be more efficiently transferred to the guitar body.

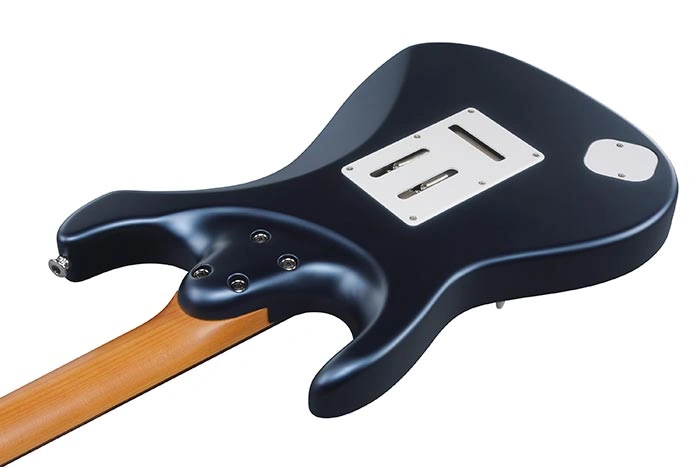

Non-recessed bridge cavity

While the AZ series features a recessed bridge cavity for fluid and dynamic tremolo action, this model has non-recessed bridge cavity. The direct contact between bridge plate and the guitar body provides better resonance and helps facilitate subtle nuances in playing dynamics.

Oval C S-TECH WOOD Roasted Maple neck

S-TECH special roasted treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes. The neck is sealed with an oil finish which helps make it feel similar to a well-played guitar neck.

Gotoh® Magnum Lock machine heads w/H.A.P.(Height Adjustable Post)

GOTOH® MAGNUM LOCK® machine heads have an established reputation for tuning stability. Its H. A. P® (Height Adjustable Post). system allows for the adjustment of string posts for the appropriate tension of each string.

Luminlay side dot inlays

The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

Super All Access Neck Joint

The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.
