SPECS

• body shape
• AEG body
• top
• Spruce top
• back & sides
• Sapele back & Sapele sides
• neck
• Comfort Grip3pc Nyatoh/Maple neck
• fretboard
• Macassar Ebony fretboard
• bridge
• Macassar Ebony bridge

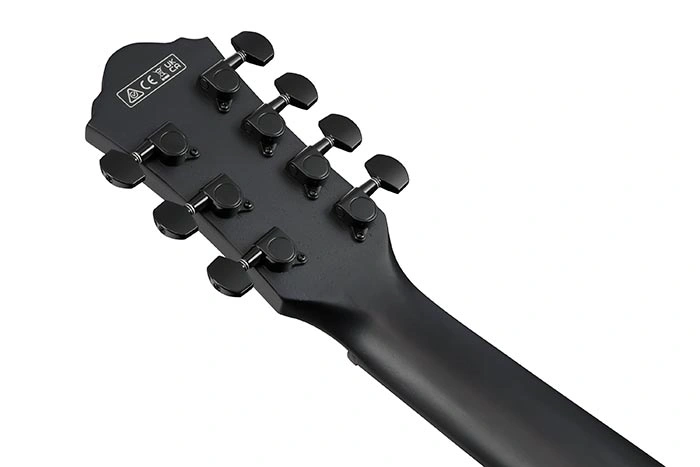

• tuning machine
• Black Die-cast tuners (18:1 gear ratio)
• nut material
• Black dyed Bone
• number of frets
• 20
• saddle material
• Black dyed Bone
• bridge pins
• Ibanez Advantage™
• strings
• D'Addario® XTAPB1253, plus .070 guage Phosphor Bronze
• string gauge
• .012/.016/.024/.032/.042/.053/.070
• string space
• 11mm
• factory tuning
• 1E,2B,3G,4D,5A,6E,7B
• pickup
• Fishman® S-Core
• preamp
• Ibanez AEQ-SP2 preamp w/Onboard tuner
• output jack
• Balanced XLR & 1/4" outputs
• battery
• 9V x1

NECK DIMENSIONS

• • Scale :
  • 634mm/25"
  • a : Width
  • 50.2mm at NUT
  • b : Width
  • 64mm at 14F
  • c : Thickness
  • 21.5mm at 1F
  • d : Thickness
  • 22.5mm at 7F
  • Radius :
  • 400mmR

BODY DIMENSIONS

• • a : Length
  • 19 3/8"
  • b : Width
  • 15"
  • c : Max Depth
  • 4 3/8"

•

PREAMP

Features

Comfort Grip 3pc Nyatoh/Maple neck

For exceptional playability, the neck features a comfortable Thin-C profile. The Nyatoh/Maple 3-piece neck construction ensures enhanced durability.

Macassar Ebony fretboard

Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

Spruce top

Spruce remains the most popular wood for acoustic guitar tops, mainly due to its pristine tonal clarity.

Sapele back and sides

Sapele back and sides offer a full-bodied and warm mid-range and a bright tone.

Fishman® S-Core pickup

The Fishman® S-Core pickup accurately translates a full guitar sound to whatever amplification system you plug into.

Macassar Ebony top loading bridge

Macassar Ebony top loading bridge offers fast and easy string changing without bridge pins.

Ibanez AEQ-SP2 preamp w/Onboard tuner

The Ibanez AEQ-SP2 Preamp delivers excellent sonic reproduction and control of tonal characteristics and easy operation

Ibanez Advantage™ bridge pins

These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
