SPECS

• body shape
• AEWC body
• top
• Spruce top
• back & sides
• Sapele back & Sapele sides
• neck
• Comfort GripNyatoh neck
• fretboard
• Macassar Ebony fretboard
• bridge
• Macassar Ebony AEWC original top loading bridge

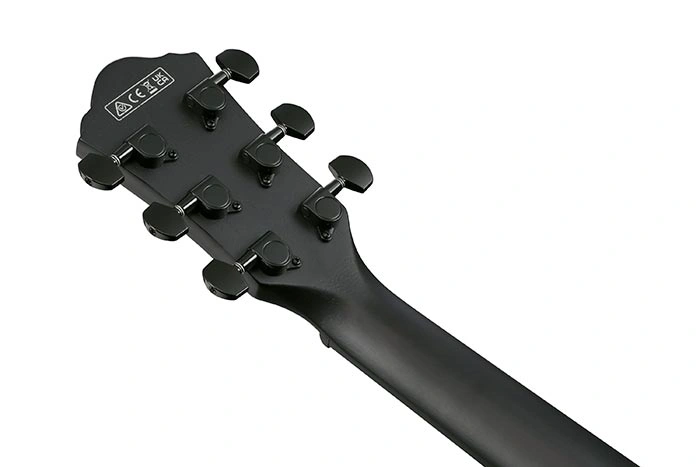

• tuning machine
• Black Die-cast tuners (18:1 gear ratio)
• number of frets
• 20
• strings
• Ibanez IACS6C
• string gauge
• .012/.016/.024/.032/.042/.053
• string space
• 11mm
• factory tuning
• 1E,2B,3G,4D,5A,6E
• pickup
• Fishman® S-Core
• preamp
• Ibanez AEQ-SP2 preamp w/Onboard tuner
• output jack
• Balanced XLR & 1/4" outputs
• battery
• 9V x1

NECK DIMENSIONS

• • Scale :
  • 634mm/25"
  • a : Width
  • 43mm at NUT
  • b : Width
  • 55mm at 14F
  • c : Thickness
  • 20mm at 1F
  • d : Thickness
  • 21mm at 7F
  • Radius :
  • 400mmR

BODY DIMENSIONS

• • a : Length
  • 19 3/8"
  • b : Width
  • 15"
  • c : Max Depth
  • 4"

•

PREAMP

Features

Comfort Grip Nyatoh neck

The Comfort Grip Nyatoh Neck contour provides superior playability.

Macassar Ebony fretboard

Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

Spruce top

Spruce remains the most popular wood for acoustic guitar tops, mainly due to its pristine tonal clarity.

Sapele back and sides

Sapele back and sides offer a full-bodied and warm mid-range and a bright tone.

Fishman® S-Core pickup

The Fishman® S-Core pickup accurately translates a full guitar sound to whatever amplification system you plug into.

Ibanez AEQ-SP2 preamp w/Onboard tuner

The Ibanez AEQ-SP2 Preamp delivers excellent sonic reproduction and control of tonal characteristics and easy operation

Macassar Ebony top loading bridge

Macassar Ebony top loading bridge offers fast and easy string changing without bridge pins.
