SPECS

• neck type

  AZ Oval CS-TECH WOOD Roasted Maple neck

• top/back/body

  Alder body

• fretboard

  S-TECH WOOD Roasted Maple fretboardBlack dot inlay

• fret

  Jumbo Stainless Steel fretsPrestige fret edge treatment

• number of frets

  24

• bridge

  Gotoh® T1802 bridge

• string space

  10.5mm

• neck pickup

  Seymour Duncan® Hyperion™ (H) neck pickupPassive/Alnico

• bridge pickup

  Seymour Duncan® Hyperion™ (H) bridge pickupPassive/Alnico

• factory tuning

  1E,2B,3G,4D,5A,6E

• strings

  D'Addario® EXL110

• string gauge

  .010/.013/.017/.026/.036/.046

• nut

  Bone nut

• hardware color

  Chrome

NECK DIMENSIONS

• • Scale :

    648mm/25.5"

  • a : Width

    42mm at NUT

  • b : Width

    57mm at 24F

  • c : Thickness

    20.5mm at 1F

  • d : Thickness

    22.5mm at 12F

  • Radius :

    305mmR

SWITCHING SYSTEM

CONTROLS

Features

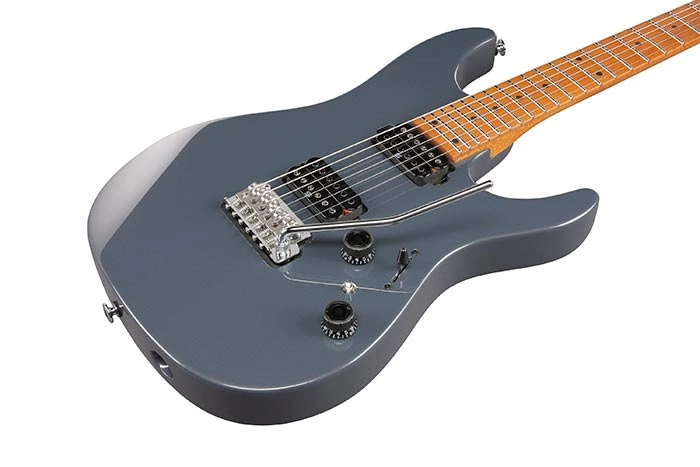

Gotoh® T1802 tremolo bridge

The T1802 tremolo bridge features machined titanium saddles and a machined steel tremolo block for a quick response, thick lows and rich highs. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.

dyna-MIX10 switching system w/Alter switch

The dyna-MIX 10 offers ten sound variations and can easily switch from humbucker and single coil modes with the mini switch. The power Tap mode provides a realistic single coil sound despite its two humbucker pickup layout.

Seymour Duncan® Hyperion™ Pickups

Seymour Duncan® Hyperion™ Pickups feature a moderate output through Alnico-5 magnets to keep the clarity of the fundamental tone when using a distortion sound, and to deliver a clear pick attack. From treble to bass, the overall tonal balance is evenly adjusted., and works well with various effect pedals.

Oil-impregnated Bone nut /Stainless Steel Frets

The Oil-impregnated bone nut provides superior tuning stability and warm rich resonance. Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response, good articulation when playing chords and clear tone when playing single notes.

S-TECH WOOD Roasted Maple fretboard w/Black dot inlay

S-TECH special roasted treatment provides a superior attack and a well-balanced tone and a rich sustain. In order to achieve supreme neck grip comfort, the fretboard edge is finished with a smooth curve.

Oval C S-TECH WOOD Roasted Maple neck

The S-TECH special roasted treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes. The neck is sealed with an oil finish which helps make it feel similar to a well-played guitar neck.

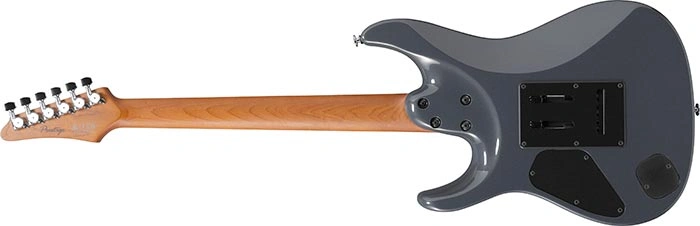

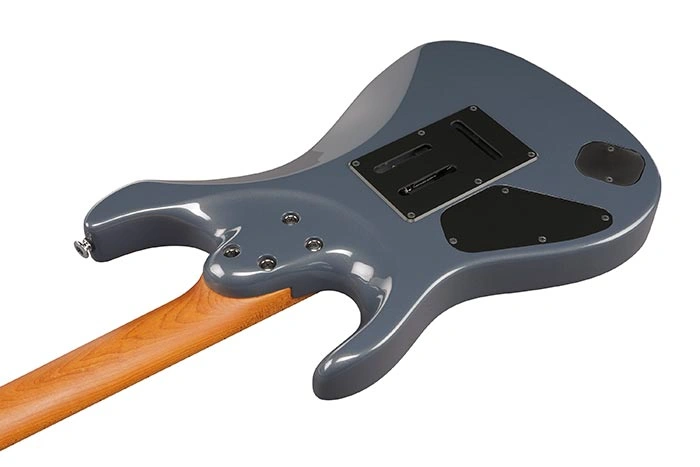

Ergonomic rear body contour

A shallow body back contour and a big forearm contour make the guitar body fit the player naturally, thus increasing playing comfort. The AZ body has a deep waist and different radii on each body edge curve, making it easier to play in both standing or sitting positions.

Gotoh® Magnum Lock machine heads w/H.A.P.(Height Adjustable Post)

GOTOH® MAGNUM LOCK® machine heads have an established reputation for tuning stability. Its H. A. P® (Height Adjustable Post). system allows for the adjustment of string posts for the appropriate tension of each string.

Luminlay side dot inlays

The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

Super All Access Neck Joint

The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.
