| Body |
Body type:
Hollow body |
Dimensions:
Length: 489mm / 19¼"
Width: 400mm / 15¾"
Depth: 67mm / 2⅝" |
Top:
Material: Burled mahogany
Binding: 3-ply cream |
Back/sides:
Material: Burled mahogany |
Neck joint:
Set-in |
Bridge:
Gotoh 510BN (10.4mm string spacing) |
Tailpiece:
Gotoh GE101A |
Pickguard:
3-ply black |
Knob style:
Sure Grip III |
Hardware color:
Gold |
|
| Neck |
Neck type:
Artstar AM Prestige |
Neck material:
3-piece mahogany/ maple |
Scale length:
628mm/ 24¾" |
Fingerboard material:
Ebony w/ 3-ply cream binding |
Fingerboard inlays:
2014: Pearl/ abalone split block
2015–2016: Acrylic/ abalone split block |
Frets:
22 / medium (Artstar edge treatment) |
Nut:
Bone (43.5mm) |
Machine heads:
Gotoh SG381 w/ pearloid buttons |
|
| Electronics/ Strings |
Pickup configuration:
HH |
Bridge pickup:
Ibanez Super 58 (H) passive/alnico |
Neck pickup:
Ibanez Super 58 (H) passive/alnico |

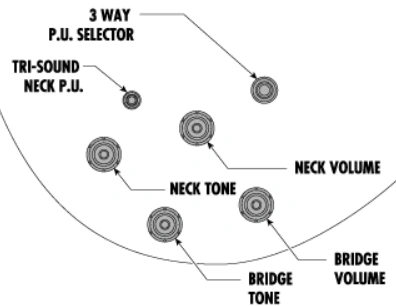

Controls:

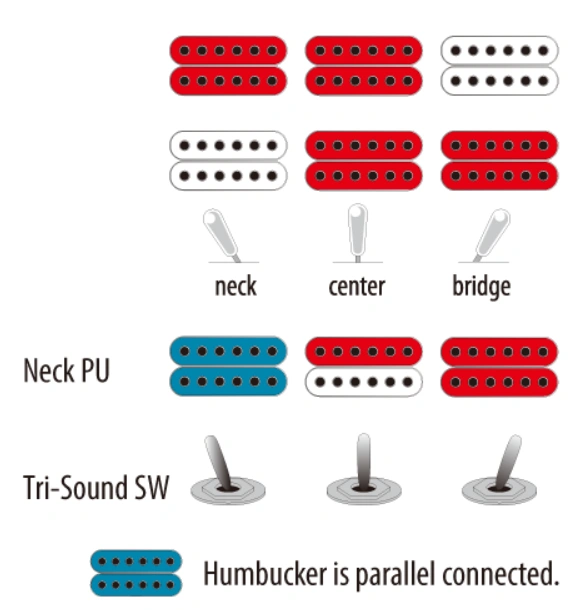

Two volumes / two tones / 3-way toggle pickup selector / Tri-sound switch for neck pickup |
Output jack:
¼" mono (side mounted) |
String gauge (factory):
.010/.013/.017/.030/.042/.052 |
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.) |
|
