| Body |
Body type:
Hollow body |
Dimensions:
Length: 508mm / 20"
Width: 419mm / 16½"
Depth: 83mm / 3¼" (70mm at tail) |
Top:
Material: Maple
Binding: Multi-layer cream/black |
Back/sides:
Material: Maple |
Neck joint:
Set-in |
Bridge:
Gotoh GE103B w/ wood base (10.4mm string spacing) |
Tailpiece:
PM120 trapeze |
Knob style:
Sure Grip II |
Hardware color:
Gold |
|
| Neck |
Neck type:
PM Prestige |
Neck material:
1-piece mahogany |
Scale length:
628mm/ 24¾" |
Fingerboard material:
Ebony w/ binding |
Fingerboard inlays:
Pearl and abalone split block |
Frets:
22 / medium (Prestige edge treatment) |
Nut:
Bone (43mm) |
Machine heads:
Gotoh SGL510 |
|
| Electronics/ Strings |
Pickup configuration:
HH |
Bridge pickup:
Ibanez Silent 58 (H) passive/alnico |
Neck pickup:
Ibanez Silent 58 (H) passive/alnico |

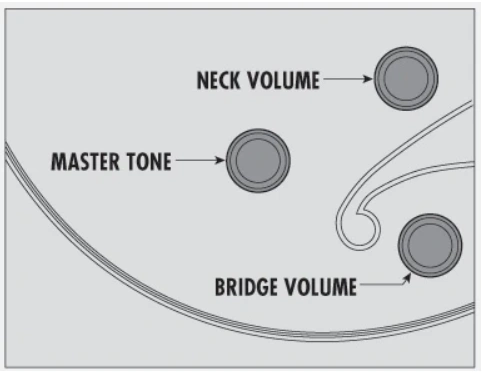

Controls:

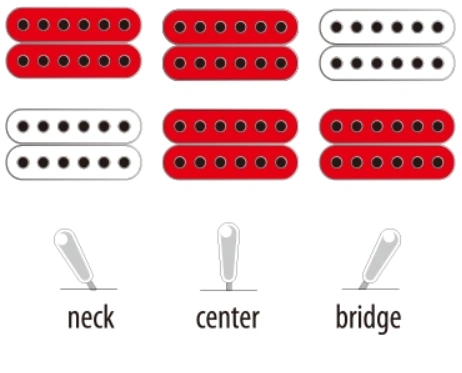

Two volumes / master tone / 3-way toggle pickup selector |
Output jack:
¼" stereo box (side mounted) |
String gauge (factory):
.011/.015/.022w/.030/.040/.050 flatwound |
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.) |
|
