SPECS

• neck type
• AZ7 Oval CRoasted Maple neck
• top/back/body
• American Basswood body
• fretboard

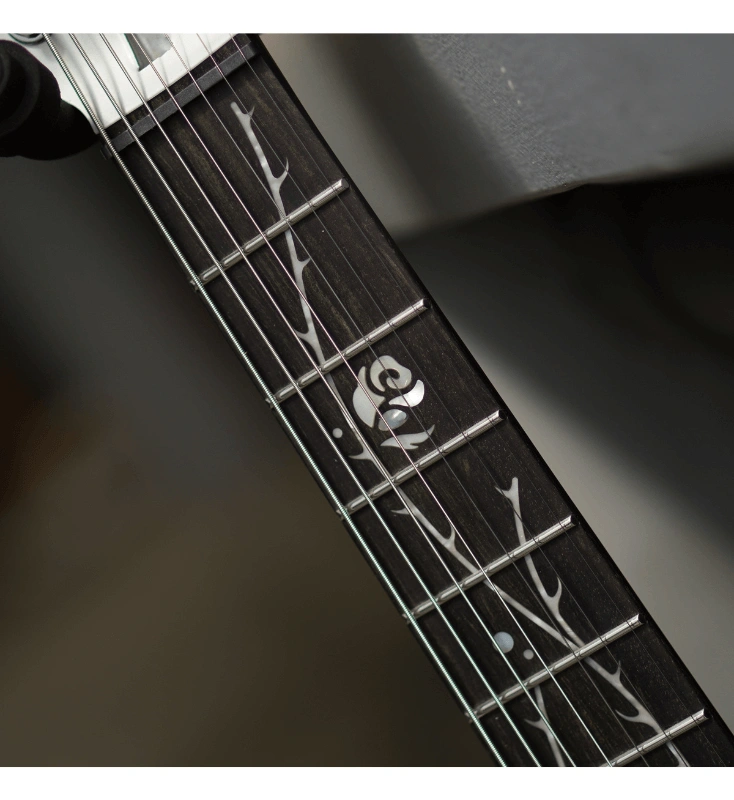

• Ebony fretboardTree of Death inlay
• fret
• Jumbo Stainless Steel frets
• number of frets
• 24
• bridge
• Gotoh® T1572S tremolo bridge
• string space
• 10.5mm
• neck pickup
• Fishman® Fluence™ Tim Henson Signature Series 7 (H) neck pickupActive/Alnico
• bridge pickup
• Fishman® Fluence™ Tim Henson Signature Series 7 (H) bridge pickupActive/Alnico
• factory tuning
• 1E,2B,3G,4D,5A,6E,7B
• strings
• D'Addario® EXL110-7
• string gauge
• .010/.013/.017/.026/.036/.046/.059
• nut
• Graph Tech®
• hardware color
• Chrome

NECK DIMENSIONS

• • Scale :
  • 648mm/25.5"
  • a : Width
  • 47mm at NUT
  • b : Width
  • 66mm at 24F
  • c : Thickness
  • 20.5mm at 1F
  • d : Thickness
  • 22.5mm at 12F
  • Radius :
  • 305mmR

SWITCHING SYSTEM

CONTROLS

Features

Oval C Roasted Maple neck

The Roasted Maple neck is heat-treated to increase stability, durability, moisture resistance and tolerance of temperature changes.

Ebony fretboard

Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

Jumbo Stainless Steel frets

Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response and effortless articulation when playing chords and clear tone when playing single notes.

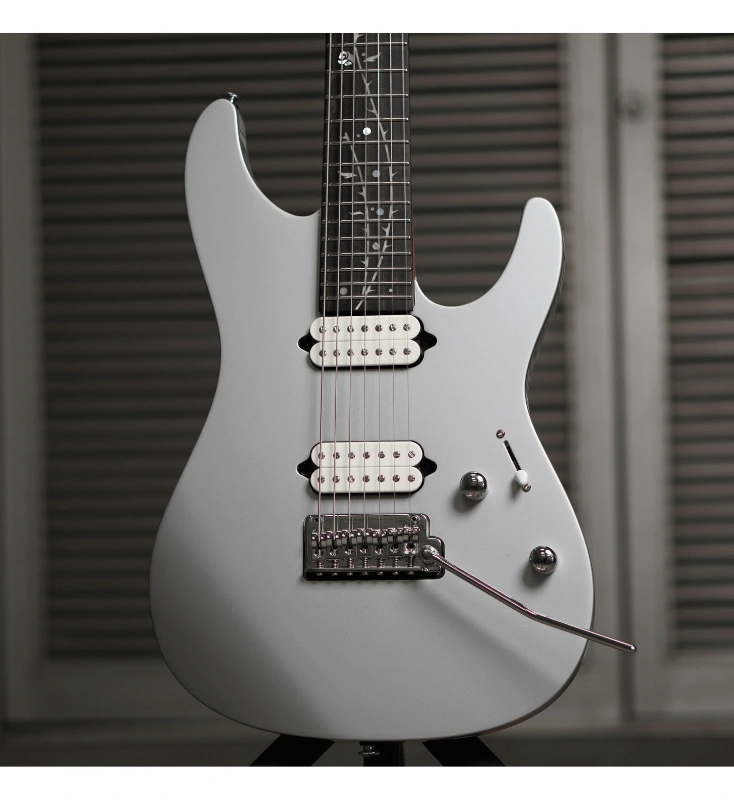

American Basswood body

The American Basswood body delivers a natural and flat tone.

Fishman® Fluence™ Tim Henson Signature Series 7 Humbacker pickups

Tim's signature Fishman® Fluence™ pickups span the entire range of aggressive lead and rhythm tones to the cleanest of clean single coil combinations, even touching on sounds Tim was previously only able to produce with his acoustic guitars.Neck Pickup Voice 1: Thick and smooth neck humbucker / Voice 2: Hyper-clean, nylon string surrogate/ Voice 3: Tim's fluid neck single coilBridge Pickup Voice 1: Based on Fishman®'s hot-rodded Classic voice, the quintessential lead tone of generation / Voice 2: Combination of Tim's favorite bridge humbuckers / Voice 3: Tim's ideal single coil combination tone when used in conjunction with neck coil

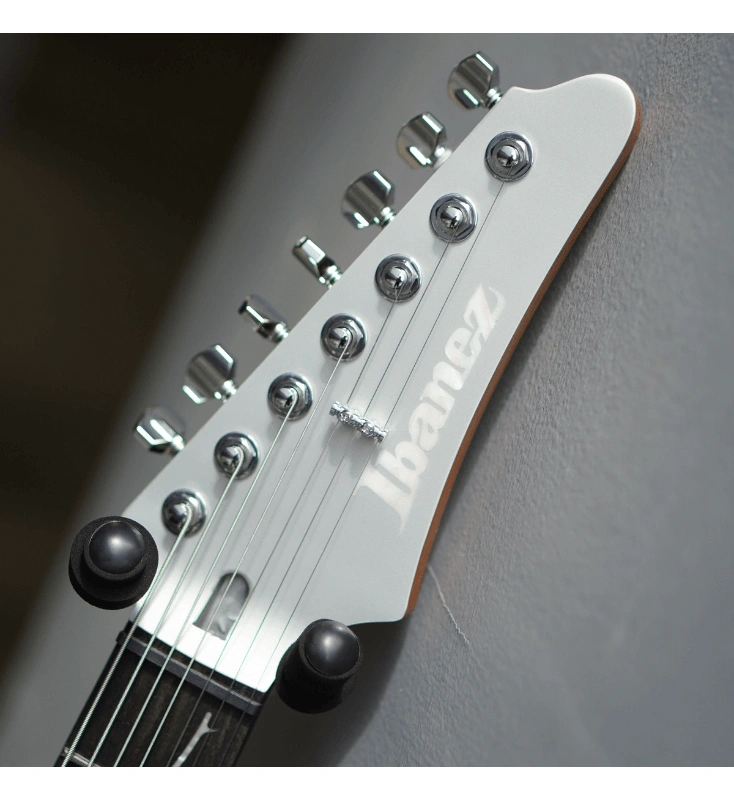

Gotoh® MG-T locking machine heads

The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

Gotoh® T1572S tremolo

The T1572S tremolo bridge features steel saddles and a steel tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.

Fishman® Fluence™ Voicing switch on tone control (push/pull) for Tim Henson Signature Series pickups

The Voicing switch allows the pickups to switch between three musically complementary voices.

Luminescent side dot inlays

The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
