SPECS

• neck type
• AZ7 Oval C / Roasted Maple neck
• top/back/body
• Quilted Maple topAmerican Basswood body
• fretboard
• Rosewood fretboardMother of Pearl dot inlay
• fret
• Jumbo Stainless Steel frets
• number of frets
• 24
• bridge
• Gotoh® T1572S bridge
• string space
• 10.5mm
• neck pickup
• Seymour Duncan® Hyperion™ 7 (H) neck pickupPassive/Alnico
• bridge pickup
• Seymour Duncan® Hyperion™ 7 (H) bridge pickupPassive/Alnico
• factory tuning
• 1E,2B,3G,4D,5A,6E,7B
• strings
• D'Addario® EXL110-7
• string gauge
• .010/.013/.017/.026/.036/.046/.059
• nut
• Graph Tech® nut
• hardware color
• Chrome
•
  • • Scale :648mm/25.5″
    • a : Width47mm at NUT
    • b : Width66mm at 24F
    • c : Thickness20.5mm at 1F
    • d : Thickness22.5mm at 12F
    • Radius :305mmR

• SWITCHING SYSTEM



• CONTROLS



Features

Rosewood fretboard

Rosewood provides a well-balanced solid tone with a focused mid range.

Luminescent side dots

The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

Gotoh® MG-T locking machine heads

The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

Quilted Maple top / American Basswood body

The Quilted Maple top sonically enriches the response for picking and the American Basswood body delivers a natural and flat tone.

Gotoh® T1572S tremolo

The T1572S tremolo bridge features steel saddles and a steel tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.

Oval C Roasted Maple neck

The Roasted Maple neck is heat-treated to increase stability, durability, moisture resistance and tolerance of temperature changes.

dyna-MIX10 switching system with Alter Switch

The dyna-MIX 10 offers ten sound variations and can easily switch from humbucker and single coil modes with the mini switch. The power Tap mode provides a realistic single coil sound despite its two humbucker pickup layout.

Seymour Duncan® Hyperion™ Pickups

Seymour Duncan® Hyperion™ Pickups feature a moderate output through Alnico-5 magnets to keep the clarity of the fundamental tone when using a distortion sound, and to deliver a clear pick attack. From treble to bass, the overall tonal balance is evenly adjusted., and works well with various effect pedals.

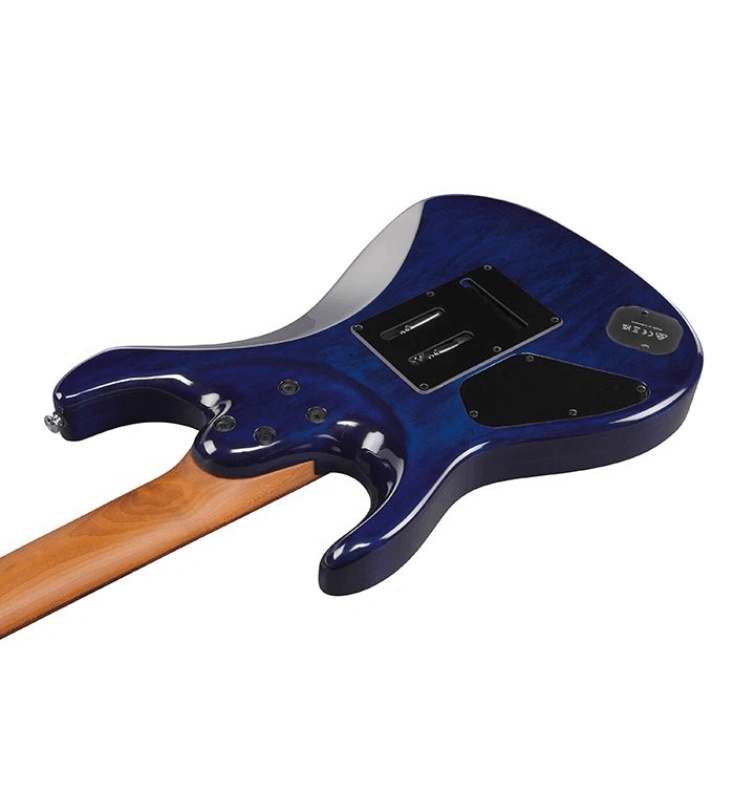

Ergonomic rear body contour

A shallow body back contour and a big forearm contour make the guitar body fit the player naturally, thus increasing playing comfort. The AZ body has a deep waist and different radii on each body edge curve, making it easier to play in both standing or sitting positions.

Super All Access Neck Joint

The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.
