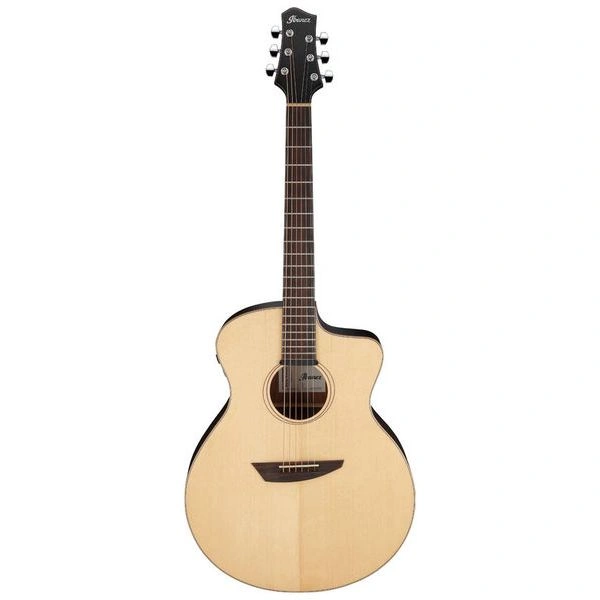

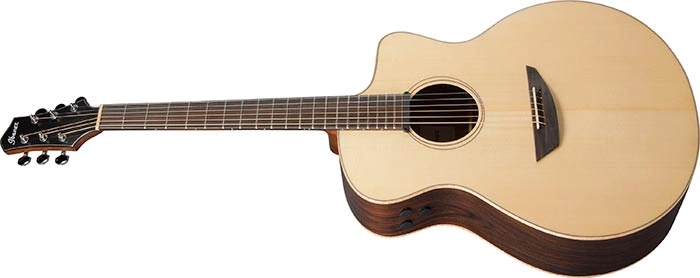

body shape    Asymmetrical Jumbo body
bracing    Modified X-M Bracing
top    Solid German Spruce top

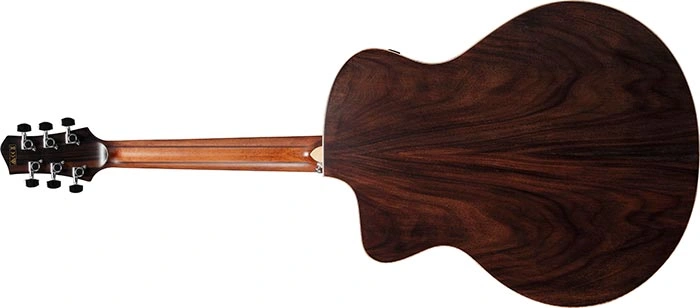

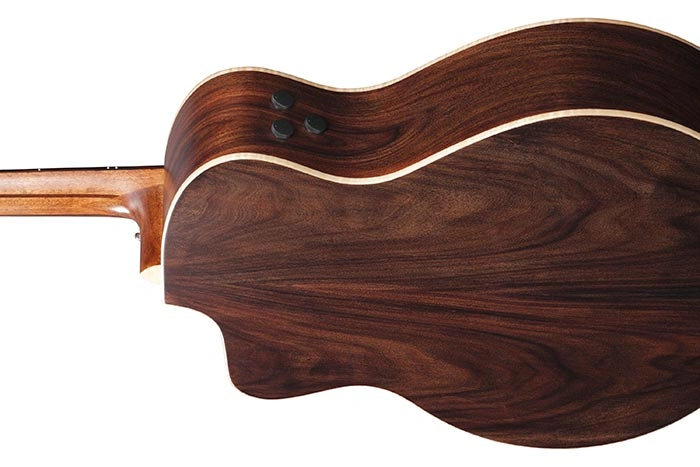

back & sides    Pau Ferro back & Pau Ferro sides
neck    PAAfrican Mahogany/Pau Ferro 5pc neck
fretboard    Macassar Ebony fretboard
bridge    Macassar Ebony top loading bridge
body binding    Flamed Maple body binding with rounded body edge
top board purfling    Wooden purfling
soundhole rosette    Specially Designed Wooden rosette

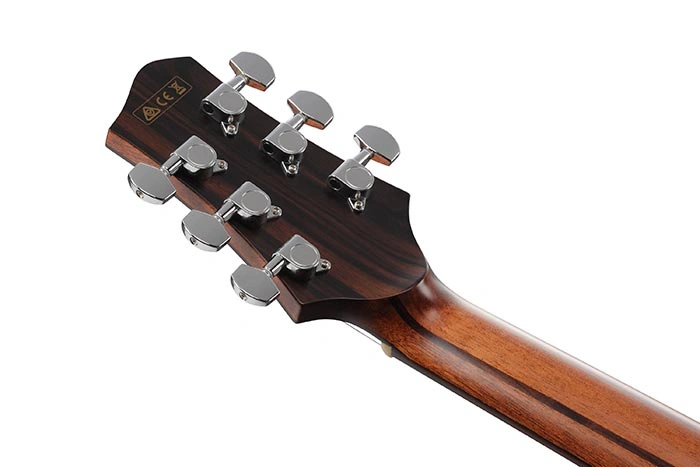

tuning machine    Chrome Die-cast tuners (18:1 gear ratio)
nut material    Unbleached Oil-impregnated Bone
number of frets    20
saddle material    Unbleached Oil-impregnated Bone saddle
strings    D'Addario® XTAPB1356
string gauge    .013/.017/.026/.035/.045/.056
string space    11.4mm
factory tuning    1E,2B,3G,4D,5A,6E
pickup    Ibanez AP11 Magnetic, T-bar Undersaddle & Contact
preamp    Ibanez Custom Electronics w/ Magnetic Pickup Volume, Undersaddle Pickup Volume and Contact Pickup Volume
output jack    Dual Outputs (Mono Out / Stereo Out)

NECK DIMENSIONS
Scale :    655mm
a : Width    45mm at NUT
b : Width    60mm at 14F
c : Thickness    20.5mm at 1F
d : Thickness    22mm at 7F
Radius :    400mmR

BODY DIMENSIONS
a : Length    20 7/8"
b : Width    17 "
c : Max Depth    4 7/8"
