SPECS

• neck type

  AZ Oval CS-TECH WOOD Roasted Maple neck

• top/back/body

• Alder body

• fretboard

  Rosewood fretboardMother of Pearl dot inlay

• fret

  Jumbo Stainless Steel fretsPrestige fret edge treatment

• number of frets

  22

• bridge

  Gotoh® T1702B bridge

• string space

  10.5mm

• neck pickup

  Seymour Duncan® Fortuna™ (S) neck pickupPassive/Alnico

• middle pickup

  Seymour Duncan® Fortuna™ (S) middle pickupPassive/Alnico

• bridge pickup

  Seymour Duncan® Fortuna™ (H) bridge pickupPassive/Alnico

• factory tuning

  1E,2B,3G,4D,5A,6E

• strings

  D'Addario® EXL110

• string gauge

  .010/.013/.017/.026/.036/.046

• nut

  Bone nut

• hardware color

  Chrome

NECK DIMENSIONS

• • Scale :

    648mm/25.5"

  • a : Width

    42mm at NUT

  • b : Width

    56.4mm at 22F

  • c : Thickness

    20.5mm at 1F

  • d : Thickness

    22.5mm at 12F

  • Radius :

    228mmR to 305mmR COMPOUND

SWITCHING SYSTEM

CONTROLS

Features

Rosewood fretboard

Rosewood provides a well-balanced solid tone with a focused mid range.

Compound Radius Fretboard (228mm to 305mm)

Offering the best of both worlds, the digitized compound radius fretboard of the AZ-N is built to enhance both smooth chording and lead work in the upper register.

5 tremolo springs

Five tremolo springs allow string vibration to be more efficiently transferred to the guitar body.

Non-recessed bridge cavity

While the AZ series features a recessed bridge cavity for fluid and dynamic tremolo action, this model has non-recessed bridge cavity. The direct contact between bridge plate and the guitar body provides better resonance and helps facilitate subtle nuances in playing dynamics.

dyna-MIX9 switching system with Alter Switch

The dyna-MIX 9 offers nine sound variations and can switch between humbucker and single coil modes with just a flick of the mini switch. One mode even simulates a humbucking sound from the combination of two single coil pickups.

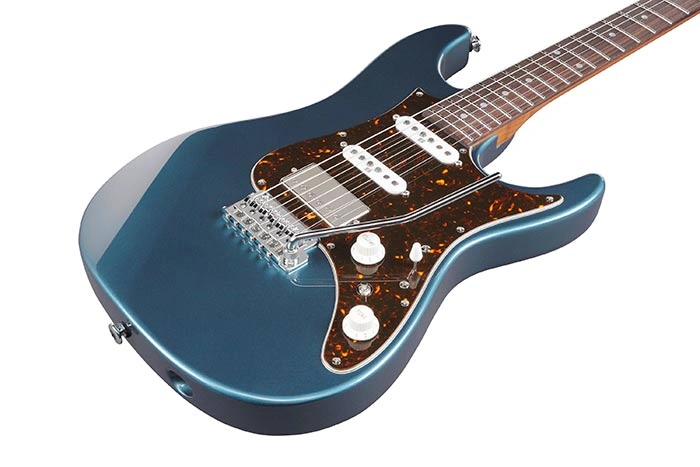

Seymour Duncan® Fortuna™ S-S-H pickups

Seymour Duncan® Fortuna™ Pickups feature a moderate output and natural clean voicing which accurately reflect subtle playing nuances. From treble to bass, the overall tonal balance is evenly adjusted and works well with various effect pedals.

Gotoh® T1702B tremolo bridge

The T1702B tremolo bridge provides quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm. The tremolo block and saddles are made of brass, facilitating better overall resonance.

Oval C S-TECH WOOD Roasted Maple neck

The S-TECH special roasted treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes. The neck is sealed with an oil finish which helps make it feel similar to a well-played guitar neck.

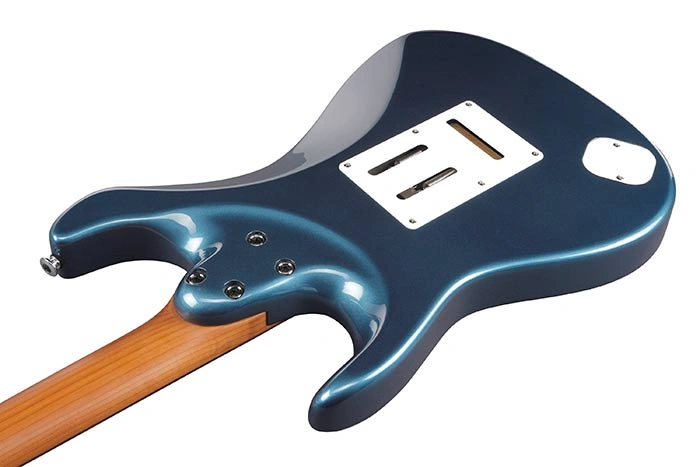

Ergonomic rear body contour

A shallow body back contour and a big forearm contour make the guitar body fit the player naturally, thus increasing playing comfort. The AZ body has a deep waist and different radii on each body edge curve, making it easier to play in both standing or sitting positions.

Gotoh® Magnum Lock machine heads w/H.A.P.(Height Adjustable Post)

GOTOH® MAGNUM LOCK® machine heads have an established reputation for tuning stability. Its H. A. P® (Height Adjustable Post). system allows for the adjustment of string posts for the appropriate tension of each string.

Luminlay side dot inlays

The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

Super All Access Neck Joint

The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.
